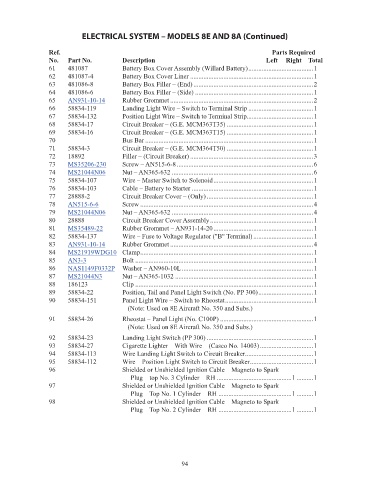

Page 97 - Luscombe Silvaire Model 8 Master Parts List

ELECTRICAL SYSTEM – MODELS 8E AND 8A (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
61 481087 Battery Box Cover Assembly (Willard Battery) .......................................1 NM!
62 481087-4 Battery Box Cover Liner ..........................................................................1 NM!
63 481086-8 Battery Box Filler – (End) ........................................................................2 NM!
64 481086-6 Battery Box Filler – (Side) .......................................................................1 NM!
65 AN931-10-14 Rubber Grommet ......................................................................................2 2
66 58834-119 Landing Light Wire – Switch to Terminal Strip .......................................1 NM!
67 58834-132 Position Light Wire – Switch to Terminal Strip........................................1 NM!
68 58834-17 Circuit Breaker – (G.E. MCM363T35) ....................................................1 NM!
69 58834-16 Circuit Breaker – (G.E. MCM363T15) ....................................................1 NM!
70 Bus Bar .....................................................................................................1 X
71 58834-3 Circuit Breaker – (G.E. MCM364T50) ....................................................1 NM!
72 18892 Filler – (Circuit Breaker) ..........................................................................3 NM!
73 MS35206-230 Screw – AN515-6-8 ..................................................................................6 0.08
74 MS21044N06 Nut – AN365-632 .....................................................................................6 0.32
75 58834-107 Wire – Master Switch to Solenoid ............................................................1 NM!
76 58834-103 Cable – Battery to Starter .........................................................................1 NM!
77 28888-2 Circuit Breaker Cover – (Only) ................................................................1 NM!
78 AN515-6-6 Screw ........................................................................................................4 0.11
79 MS21044N06 Nut – AN365-632 .....................................................................................4 0.32
80 28888 Circuit Breaker Cover Assembly ..............................................................1 NM!
81 MS35489-22 Rubber Grommet – AN931-14-20 ............................................................1 2.34
82 58834-137 Wire – Fuse to Voltage Regulator ("B" Terminal) ....................................1 NM!
83 AN931-10-14 Rubber Grommet ......................................................................................4 2
84 MS21919WDG10 Clamp ........................................................................................................1 1
85 AN3-3 Bolt ...........................................................................................................1 0.5
86 NAS1149F0332P Washer – AN960-10L ...............................................................................1 0.04
87 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
88 186123 Clip ...........................................................................................................1 NM!
89 58834-22 Position, Tail and Panel Light Switch (No. PP 300) .................................1 NM!
90 58834-151 Panel Light Wire – Switch to Rheostat .....................................................1 NM!
(Note: Used on 8E Aircraft No. 350 and Subs.)
91 58834-26 Rheostat – Panel Light (No. C100P) ........................................................1 NM!
(Note: Used on 8E Aircraft No. 350 and Subs.)

92 58834-23 Landing Light Switch (PP 300) ................................................................1 NM!
93 58834-27 Cigarette Lighter – With Wire – (Casco No. 14003) ................................1 NM!
94 58834-113 Wire Landing Light Switch to Circuit Breaker.........................................1 NM!
95 58834-112 Wire – Position Light Switch to Circuit Breaker ......................................1 NM!
96 Shielded or Unshielded Ignition Cable – Magneto to Spark
Plug – top No. 3 Cylinder – RH .............................................1 ..........1 X
97 Shielded or Unshielded Ignition Cable – Magneto to Spark
Plug – Top No. 1 Cylinder – RH ............................................1 ..........1 X
98 Shielded or Unshielded Ignition Cable – Magneto to Spark
Plug – Top No. 2 Cylinder – RH ............................................1 ..........1 X

94
