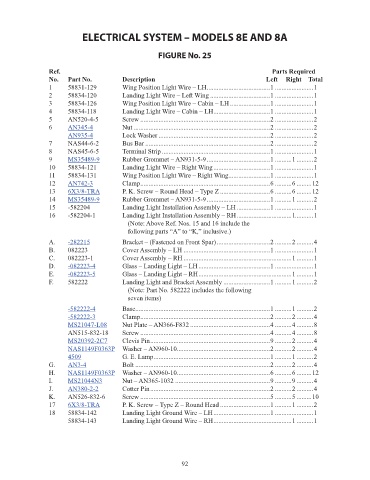

Page 95 - Luscombe Silvaire Model 8 Master Parts List

ELECTRICAL SYSTEM – MODELS 8E AND 8A

FIGURE No. 25

Ref. Parts Required
No. Part No. Description Left Right Total
1 58831-129 Wing Position Light Wire – LH ......................................1 .......................1 NM!
2 58834-120 Landing Light Wire – Left Wing ....................................1 .......................1 NM!
3 58834-126 Wing Position Light Wire – Cabin – LH ........................1 .......................1 NM!
4 58834-118 Landing Light Wire – Cabin – LH ..................................1 .......................1 NM!
5 AN520-4-5 Screw ..............................................................................2 .......................2 NM!
6 AN345-4 Nut ..................................................................................2 .......................2 0.2
AN935-4 Lock Washer ...................................................................2 .......................2 0.1
7 NAS44-6-2 Bus Bar ...........................................................................2 .......................2 NM!
8 NAS45-6-5 Terminal Strip .................................................................1 .......................1 NM!
9 MS35489-9 Rubber Grommet – AN931-5-9 ......................................1 ..........1 ..........2 0.78
10 58834-121 Landing Light Wire – Right Wing ..................................1 .......................1 NM!
11 58834-131 Wing Position Light Wire – Right Wing .........................1 .......................1 NM!
12 AN742-3 Clamp ..............................................................................6 ..........6 .........12 0.72
13 6X3/8-TRA P. K. Screw – Round Head – Type Z ..............................6 ..........6 .........12 0.06
14 MS35489-9 Rubber Grommet – AN931-5-9 ......................................1 ..........1 ..........2 0.78
15 -582204 Landing Light Installation Assembly – LH ....................1 .......................1 NM!
16 -582204-1 Landing Light Installation Assembly – RH ................................. l ...........1 NM!
(Note: Above Ref. Nos. 15 and 16 include the
following parts “A” to “K,” inclusive.)
A. -282215 Bracket – (Fastened on Front Spar) ................................2 ..........2 ..........4 32.28
B. 082223 Cover Assembly – LH ....................................................1 .......................1 NM!
C. 082223-1 Cover Assembly – RH .................................................................1 ..........1 NM!
D. -082223-4 Glass – Landing Light – LH ...........................................1 .......................1 57.92
E. -082223-5 Glass – Landing Light – RH ........................................................1 ..........1 57.92
F. 582222 Landing Light and Bracket Assembly ............................1 ..........1 ..........2 NM!
(Note: Part No. 582222 includes the following
seven items)

-582222-4 Base .................................................................................1 ..........1 ..........2 179.38
-582222-3 Clamp ..............................................................................2 ..........2 ..........4 34.35
MS21047-L08 Nut Plate – AN366-F832 ................................................4 ..........4 ..........8 0.56
AN515-832-18 Screw ..............................................................................4 ..........4 ..........8 NM!
MS20392-2C7 Clevis Pin ........................................................................9 ..........2 ..........4 0.5
NAS1149F0363P Washer – AN960-10 ........................................................2 ..........2 ..........4 0.04
4509 G. E. Lamp ......................................................................1 ..........1 ..........2 21.84
G. AN3-4 Bolt .................................................................................2 ..........2 ..........4 0.6
H. NAS1149F0363P Washer – AN960-10 ........................................................6 ..........6 .........12 0.04
I. MS21044N3 Nut – AN365-1032 .........................................................9 ..........9 ..........4 0.24
J. AN380-2-2 Cotter Pin ........................................................................2 ..........2 ..........4 0.04
K. AN526-832-6 Screw ..............................................................................5 ..........5 .........10 NM!
17 6X3/8-TRA P. K. Screw – Type Z – Round Head ..............................1 ..........1 ..........2 0.06
18 58834-142 Landing Light Ground Wire – LH ..................................1 .......................1 NM!
58834-143 Landing Light Ground Wire – RH ...............................................1 ..........1 NM!

92
