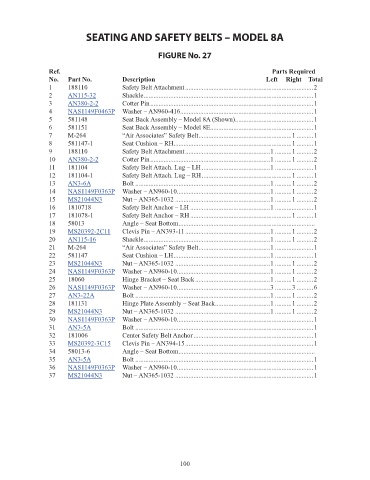

SEATING AND SAFETY BELTS – MODEL 8A

FIGURE No. 27

Ref. Parts Required
No. Part No. Description Left Right Total
1 188110 Safety Belt Attachment .............................................................................2 NM!
2 AN115-32 Shackle ......................................................................................................1 34.02
3 AN380-2-2 Cotter Pin ..................................................................................................1 0.04
4 NAS1149F0463P Washer – AN960-416 ................................................................................1 0.06
5 581148 Seat Back Assembly – Model 8A (Shown) ...............................................1 NM!
6 581151 Seat Back Assembly – Model 8E ..............................................................1 NM!
7 M-264 “Air Associates” Safety Belt ........................................................1 ..........1 NM!
8 581147-1 Seat Cushion – RH .......................................................................1 ..........1 NM!
9 188110 Safety Belt Attachment ...................................................1 ..........1 ..........2 NM!
10 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
11 181104 Safety Belt Attach. Lug – LH .........................................1 .......................1 NM!
12 181104-1 Safety Belt Attach. Lug – RH ......................................................1 ..........1 NM!
13 AN3-6A Bolt .................................................................................1 ..........1 ..........2 0.16
14 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
15 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
16 1810718 Safety Belt Anchor – LH ................................................1 .......................1 NM!
17 181078-1 Safety Belt Anchor – RH .............................................................1 ..........1 NM!
18 58013 Angle – Seat Bottom .................................................................................. NM!
19 MS20392-2C11 Clevis Pin – AN393-11 ...................................................1 ..........1 ..........2 0.72
20 AN115-16 Shackle ............................................................................1 ..........1 ..........2 22.5
21 M-264 “Air Associates” Safety Belt ...........................................1 .......................1 NM!
22 581147 Seat Cushion – LH ..........................................................1 .......................1 NM!
23 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
24 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
25 18060 Hinge Bracket – Seat Back .............................................1 ..........1 ..........2 NM!
26 NAS1149F0363P Washer – AN960-10 ........................................................3 ..........3 ..........6 0.04
27 AN3-22A Bolt .................................................................................1 ..........1 ..........2 0.44
28 181131 Hinge Plate Assembly – Seat Back .................................1 ..........1 ..........2 NM!
29 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
30 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
31 AN3-5A Bolt ...........................................................................................................1 0.16
32 181006 Center Safety Belt Anchor ........................................................................1 NM!
33 MS20392-3C15 Clevis Pin – AN394-15 .............................................................................1 0.58
34 58013-6 Angle – Seat Bottom .................................................................................. NM!
35 AN3-5A Bolt ...........................................................................................................1 0.16
36 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
37 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
