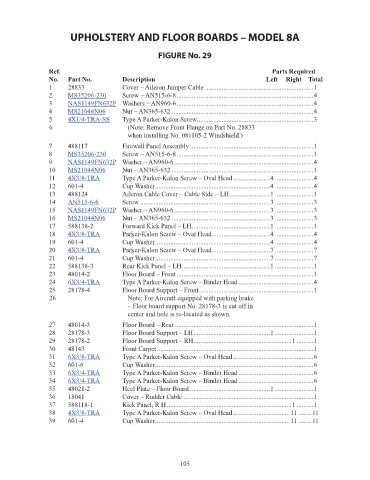

UPHOLSTERY AND FLOOR BOARDS – MODEL 8A

FIGURE No. 29

Ref. Parts Required
No. Part No. Description Left Right Total
1 28833 Cover – Aileron Jumper Cable .................................................................1 NM!
2 MS35206-230 Screw – AN515-6-8 ..................................................................................4 0.08
3 NAS1149FN632P Washers – AN960-6 ..................................................................................4 0.06
4 MS21044N06 Nut – AN365-632 .....................................................................................4 0.32
5 4X1/4-TRA-SS Type A Parker-Kalon Screw......................................................................3 0.1
6 (Note: Remove Front Flange on Part No. 28833
when installing No. 081105-2 Windshield.)
7 488117 Firewall Panel Assembly ..........................................................................1 NM!
8 MS35206-230 Screw – AN515-6-8 ..................................................................................1 0.08
9 NAS1149FN632P Washer – AN960-6 ....................................................................................4 0.06
10 MS21044N06 Nut – AN365-632 .....................................................................................1 0.32
11 4X3/8-TRA Type A Parker-Kalon Screw – Oval Head ......................4 .......................4 0.1
12 601-4 Cup Washer .....................................................................4 .......................4 NM!
13 488124 Aileron Cable Cover – Cable Side – LH ........................1 .......................1 NM!
14 AN515-6-6 Screw ..............................................................................3 .......................3 0.11
15 NAS1149FN632P Washer – AN960-6 ..........................................................3 .......................3 0.06
16 MS21044N06 Nut – AN365-632 ...........................................................3 .......................3 0.32
17 588138-2 Forward Kick Panel – LH ...............................................1 .......................1 NM!
18 4X3/8-TRA Parker-Kalon Screw – Oval Head ...................................4 .......................4 0.1
19 601-4 Cup Washer .....................................................................4 .......................4 NM!
20 4X3/8-TRA Parker-Kalon Screw – Oval Head ...................................7 .......................7 0.1
21 601-4 Cup Washer .....................................................................7 .......................7 NM!
22 588138-3 Rear Kick Panel – LH .....................................................1 .......................1 NM!
23 48014-2 Floor Board – Front ..................................................................................1 NM!
24 6X3/4-TRA Type A Parker-Kalon Screw – Binder Head .............................................4 0.07
25 28178-4 Floor Board Support – Front .....................................................................1 NM!
26 Note: For Aircraft equipped with parking brake
– Floor board support No. 28178-3 is cut off in
center and hole is re-located as shown.
27 48014-3 Floor Board – Rear ...................................................................................1 NM!
28 28178-3 Floor Board Support – LH ..............................................1 .......................1 NM!
29 28178-2 Floor Board Support – RH ...........................................................1 ..........1 NM!
30 48143 Front Carpet ..............................................................................................1 NM!
31 6X3/8-TRA Type A Parker-Kalon Screw – Oval Head ................................................6 0.06
32 601-6 Cup Washer ...............................................................................................6 NM!
33 6X3/4-TRA Type A Parker-Kalon Screw – Binder Head .............................................6 0.07
34 6X3/4-TRA Type A Parker-Kalon Screw – Binder Head .............................................6 0.07
35 48021-2 Heel Plate – Floor Board ................................................1 .......................1 NM!
36 18041 Cover – Rudder Cable ..............................................................................1 NM!
37 588118-1 Kick Panel, R.H ...........................................................................1 ..........1 NM!
38 4X3/8-TRA Type A Parker-Kalon Screw – Oval Head ..................................11 ........11 0.1
39 601-4 Cup Washer .................................................................................11 ........11 NM!

105
