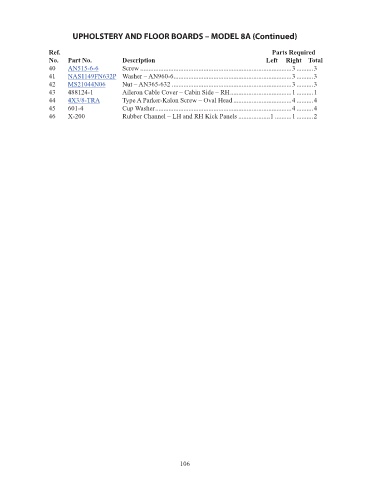

UPHOLSTERY AND FLOOR BOARDS – MODEL 8A (Continued)
Ref. Parts Required
No. Part No. Description Left Right Total
40 AN515-6-6 Screw ...........................................................................................3 ..........3 0.11
41 NAS1149FN632P Washer – AN960-6 .......................................................................3 ..........3 0.06
42 MS21044N06 Nut – AN365-632 ........................................................................3 ..........3 0.32
43 488124-1 Aileron Cable Cover – Cabin Side – RH .....................................1 ..........1 NM!
44 4X3/8-TRA Type A Parker-Kalon Screw – Oval Head ...................................4 ..........4 0.1
45 601-4 Cup Washer ..................................................................................4 ..........4 NM!
46 X-200 Rubber Channel – LH and RH Kick Panels ...................1 ..........1 ..........2 NM!
106
