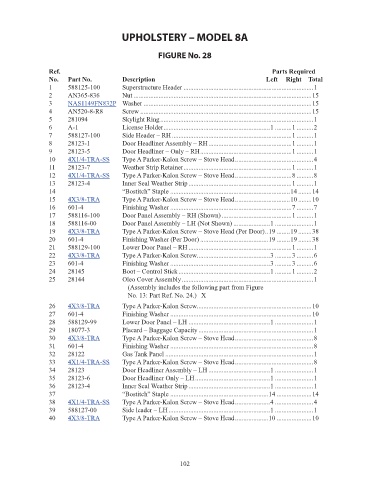

UPHOLSTERY – MODEL 8A

FIGURE No. 28

Ref. Parts Required
No. Part No. Description Left Right Total
1 588125-100 Superstructure Header ..............................................................................1 NM!
2 AN365-836 Nut ...........................................................................................................15 NM!
3 NAS1149FN832P Washer .....................................................................................................15 0.04
4 AN520-8-R8 Screw .......................................................................................................15 NM!
5 281094 Skylight Ring ............................................................................................1 NM!
6 A-1 License Holder ................................................................1 ..........1 ..........2 NM!
7 588127-100 Side Header – RH ........................................................................1 ..........1 NM!
8 28123-1 Door Headliner Assembly – RH ..................................................1 ..........1 NM!
9 28123-5 Door Headliner – Only – RH .......................................................1 ..........1 NM!
10 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head ...............................................4 0.1
11 28123-7 Weather Strip Retainer .................................................................1 ..........1 NM!
12 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head ..................................8 ..........8 0.1
13 28123-4 Inner Seal Weather Strip ..............................................................1 ..........1 NM!
14 “Bostitch” Staple ........................................................................14 ........14 X
15 4X3/8-TRA Type A Parker-Kalon Screw – Stove Head .................................10 ........10 0.1
16 601-4 Finishing Washer .........................................................................7 ..........7 NM!
17 588116-100 Door Panel Assembly – RH (Shown) ..........................................1 ..........1 NM!
18 588116-00 Door Panel Assembly – LH (Not Shown) ......................1 .......................1 NM!
19 4X3/8-TRA Type A Parker-Kalon Screw – Stove Head (Per Door) ..19 ........19 ........38 0.1
20 601-4 Finishing Washer (Per Door) .........................................19 ........19 ........38 NM!
21 588129-100 Lower Door Panel – RH ..............................................................1 ..........1 NM!
22 4X3/8-TRA Type A Parker-Kalon Screw............................................3 ..........3 ..........6 0.1
23 601-4 Finishing Washer ............................................................3 ..........3 ..........6 NM!
24 28145 Boot – Control Stick .......................................................1 ..........1 ..........2 NM!
25 28144 Oleo Cover Assembly ...............................................................................1 NM!
(Assembly includes the following part from Figure
No. 13: Part Ref. No. 24.) X
26 4X3/8-TRA Type A Parker-Kalon Screw.....................................................................10 0.1
27 601-4 Finishing Washer .....................................................................................10 NM!
28 588129-99 Lower Door Panel – LH .................................................1 .......................1 NM!
29 18077-3 Placard – Baggage Capacity .....................................................................1 NM!
30 4X3/8-TRA Type A Parker-Kalon Screw – Stove Head ...............................................8 0.1
31 601-4 Finishing Washer ......................................................................................8 NM!
32 28122 Gas Tank Panel .........................................................................................1 NM!
33 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head ...............................................8 0.1
34 28123 Door Headliner Assembly – LH .....................................1 .......................1 NM!
35 28123-6 Door Headliner Only – LH .............................................1 .......................1 NM!
36 28123-4 Inner Seal Weather Strip .................................................1 .......................1 NM!
37 “Bostitch” Staple ...........................................................14 .....................14 X
38 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head .....................4 .......................4 0.1
39 588127-00 Side leader – LH .............................................................1 .......................1 NM!
40 4X3/8-TRA Type A Parker-Kalon Screw – Stove Head ....................10 .....................10 0.1

102
