Page 111 - Luscombe Silvaire Model 8 Master Parts List

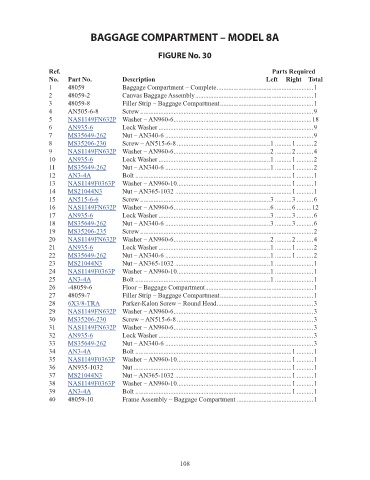

BAGGAGE COMPARTMENT – MODEL 8A

FIGURE No. 30

Ref. Parts Required
No. Part No. Description Left Right Total
1 48059 Baggage Compartment – Complete ..........................................................1 NM!
2 48059-2 Canvas Baggage Assembly .......................................................................1 NM!
3 48059-8 Filler Strip – Baggage Compartment ........................................................1 NM!
4 AN505-6-8 Screw ........................................................................................................9 NM!
5 NAS1149FN632P Washer – AN960-6 ...................................................................................18 0.06
6 AN935-6 Lock Washer .............................................................................................9 0.02
7 MS35649-262 Nut – AN340-6 .........................................................................................9 0.14
8 MS35206-230 Screw – AN515-6-8 ........................................................1 ..........1 ..........2 0.08
9 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
10 AN935-6 Lock Washer ...................................................................1 ..........1 ..........2 0.02
11 MS35649-262 Nut – AN340-6 ...............................................................1 ..........1 ..........2 0.14
12 AN3-4A Bolt ..............................................................................................1 ..........1 0.2
13 NAS1149F0363P Washer – AN960-10 .....................................................................1 ..........1 0.04
14 MS21044N3 Nut – AN365-1032 ......................................................................1 ..........1 0.24
15 AN515-6-6 Screw ..............................................................................3 ..........3 ..........6 0.11
16 NAS1149FN632P Washer – AN960-6 ..........................................................6 ..........6 .........12 0.06
17 AN935-6 Lock Washer ...................................................................3 ..........3 ..........6 0.02
18 MS35649-262 Nut – AN340-6 ...............................................................3 ..........3 ..........6 0.14
19 MS35206-235 Screw ........................................................................................................2 0.2
20 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
21 AN935-6 Lock Washer ...................................................................1 ..........1 ..........2 0.02
22 MS35649-262 Nut – AN340-6 ...............................................................1 ..........1 ..........2 0.14
23 MS21044N3 Nut – AN365-1032 .........................................................1 .......................1 0.24
24 NAS1149F0363P Washer – AN960-10 ........................................................1 .......................1 0.04
25 AN3-4A Bolt .................................................................................1 .......................1 0.2
26 -48059-6 Floor – Baggage Compartment .................................................................1 NM!
27 48059-7 Filler Strip – Baggage Compartment ........................................................1 NM!
28 6X3/8-TRA Parker-Kalon Screw – Round Head ..........................................................3 0.06
29 NAS1149FN632P Washer – AN960-6 ....................................................................................3 0.06
30 MS35206-230 Screw – AN515-6-8 ..................................................................................3 0.08
31 NAS1149FN632P Washer – AN960-6 ....................................................................................3 0.06
32 AN935-6 Lock Washer .............................................................................................3 0.02
33 MS35649-262 Nut – AN340-6 .........................................................................................3 0.14
34 AN3-4A Bolt ..............................................................................................1 ..........1 0.2
35 NAS1149F0363P Washer – AN960-10 .....................................................................1 ..........1 0.04
36 AN935-1032 Nut ...............................................................................................1 ..........1 NM!
37 MS21044N3 Nut – AN365-1032 ......................................................................1 ..........1 0.24
38 NAS1149F0363P Washer – AN960-10 .....................................................................1 ..........1 0.04
39 AN3-4A Bolt ..............................................................................................1 ..........1 0.2
40 48059-10 Frame Assembly – Baggage Compartment ..............................................1 NM!
