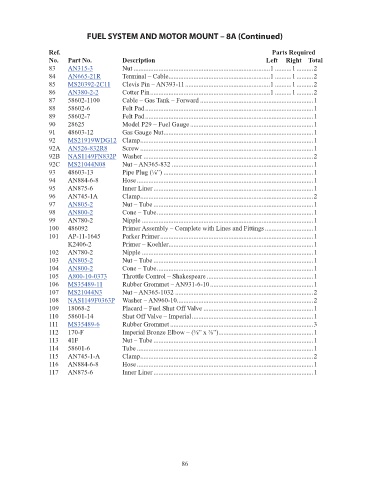

FUEL SYSTEM AND MOTOR MOUNT – 8A (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
83 AN315-3 Nut ..................................................................................1 ..........1 ..........2 0.26
84 AN665-21R Terminal – Cable .............................................................1 ..........1 ..........2 14.86
85 MS20392-2C11 Clevis Pin – AN393-11 ...................................................1 ..........1 ..........2 0.72
86 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
87 58602-1100 Cable – Gas Tank – Forward ....................................................................1 NM!
88 58602-6 Felt Pad .....................................................................................................1 NM!
89 58602-7 Felt Pad .....................................................................................................1 NM!
90 28625 Model P29 – Fuel Gauge ..........................................................................1 NM!
91 48603-12 Gas Gauge Nut ..........................................................................................1 NM!
92 MS21919WDG12 Clamp ........................................................................................................1 1.52
92A AN526-832R8 Screw ........................................................................................................1 0.04
92B NAS1149FN832P Washer ......................................................................................................2 0.04
92C MS21044N08 Nut – AN365-832 .....................................................................................1 0.24
93 48603-13 Pipe Plug (⅛”) ..........................................................................................1 NM!
94 AN884-6-8 Hose ..........................................................................................................1 NM!
95 AN875-6 Inner Liner ................................................................................................1 NM!
96 AN745-1A Clamp ........................................................................................................2 NM!
97 AN805-2 Nut – Tube ................................................................................................1 3
98 AN800-2 Cone – Tube ..............................................................................................1 6.94
99 AN780-2 Nipple .......................................................................................................1 NM!
100 486092 Primer Assembly – Complete with Lines and Fittings .............................1 NM!
101 AP-11-1645 Parker Primer ............................................................................................1 NM!
K2406-2 Primer – Koehler .......................................................................................1 NM!
102 AN780-2 Nipple .......................................................................................................1 NM!
103 AN805-2 Nut – Tube ................................................................................................1 3
104 AN800-2 Cone – Tube ..............................................................................................1 6.94
105 A800-10-0373 Throttle Control – Shakespeare ................................................................1 114.79
106 MS35489-11 Rubber Grommet – AN931-6-10 ..............................................................1 0.6
107 MS21044N3 Nut – AN365-1032 ...................................................................................2 0.24
108 NAS1149F0363P Washer – AN960-10 ..................................................................................2 0.04
109 18068-2 Placard – Fuel Shut Off Valve ..................................................................1 NM!
110 58601-14 Shut Off Valve – Imperial .........................................................................1 NM!
111 MS35489-6 Rubber Grommet ......................................................................................3 0.4
112 170-F Imperial Bronze Elbow – (⅜” x ⅜”) .........................................................1 NM!
113 41F Nut – Tube ................................................................................................1 NM!
114 58601-6 Tube ..........................................................................................................1 NM!
115 AN745-1-A Clamp ........................................................................................................2 NM!
116 AN884-6-8 Hose ..........................................................................................................1 NM!
117 AN875-6 Inner Liner ................................................................................................1 NM!
