Page 88 - Luscombe Silvaire Model 8 Master Parts List

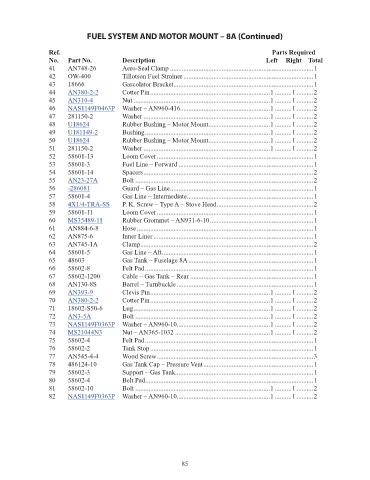

FUEL SYSTEM AND MOTOR MOUNT – 8A (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
41 AN748-26 Aero-Seal Clamp ......................................................................................1 NM!
42 OW-400 Tillotson Fuel Strainer ..............................................................................1 NM!
43 18666 Gascolator Bracket ....................................................................................1 NM!
44 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
45 AN310-4 Nut ..................................................................................1 ..........1 ..........2 1.6
46 NAS1149F0463P Washer – AN960-416 ......................................................1 ..........1 ..........2 0.06
47 281150-2 Washer ............................................................................1 ..........1 ..........2 NM!
48 U18624 Rubber Bushing – Motor Mount .....................................1 ..........1 ..........2 45.66
49 U181149-2 Bushing ...........................................................................1 ..........1 ..........2 15.18
50 U18624 Rubber Bushing – Motor Mount .....................................1 ..........1 ..........2 45.66
51 281150-2 Washer ............................................................................1 ..........1 ..........2 NM!
52 58601-13 Loom Cover ..............................................................................................1 NM!
53 58601-3 Fuel Line – Forward .................................................................................1 NM!
54 58601-14 Spacers ......................................................................................................2 NM!
55 AN23-27A Bolt ...........................................................................................................2 0.62
56 -286081 Guard – Gas Line ......................................................................................1 43.12
57 58601-4 Gas Line – Intermediate ............................................................................1 NM!
58 4X1/4-TRA-SS P. K. Screw – Type A – Stove Head ..........................................................2 0.1
59 58601-11 Loom Cover ..............................................................................................1 NM!
60 MS35489-11 Rubber Grommet – AN931-6-10 ..............................................................1 0.6
61 AN884-6-8 Hose ..........................................................................................................1 NM!
62 AN875-6 Inner Liner ................................................................................................1 NM!
63 AN745-1A Clamp ........................................................................................................2 NM!
64 58601-5 Gas Line – Aft ...........................................................................................1 NM!
65 48603 Gas Tank – Fuselage 8A ...........................................................................1 NM!
66 58602-8 Felt Pad .....................................................................................................1 NM!
67 58602-1200 Cable – Gas Tank – Rear ..........................................................................1 NM!
68 AN130-8S Barrel – Turnbuckle ..................................................................................1 NM!
69 AN393-9 Clevis Pin ........................................................................1 ..........1 ..........2 1.03
70 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
71 18602-S50-6 Lug ..................................................................................1 ..........1 ..........2 NM!
72 AN3-5A Bolt .................................................................................1 ..........1 ..........2 0.16
73 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
74 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
75 58602-4 Felt Pad .....................................................................................................1 NM!
76 58602-2 Tank Stop ..................................................................................................1 NM!
77 AN545-4-4 Wood Screw ..............................................................................................3 NM!
78 486124-10 Gas Tank Cap – Pressure Vent ..................................................................1 NM!
79 58602-3 Support – Gas Tank ...................................................................................1 NM!
80 58602-4 Belt Pad .....................................................................................................1 NM!
81 58602-10 Bolt .................................................................................1 ..........1 ..........2 NM!
82 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04

85
