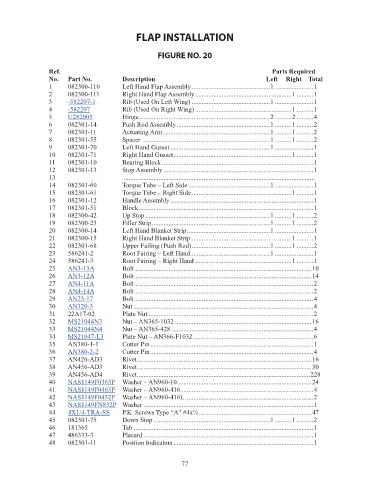

Page 80 - Luscombe Silvaire Model 8 Master Parts List

FLAP INSTALLATION

FIGURE NO. 20

Ref. Parts Required
No. Part No. Description Left Right Total
1 082300-110 Left Hand Flap Assembly ...............................................1 .......................1 NM!
2 082300-111 Right Hand Flap Assembly ..........................................................1 ..........1 NM!
3 -582207-1 Rib (Used On Left Wing) ...............................................1 .......................1 42.97
4 -582207 Rib (Used On Right Wing) ..........................................................1 ..........1 42.97
5 U282005 Hinge ...............................................................................2 ..........2 ..........4 212.06
6 082301-14 Push Rod Assembly ........................................................1 ..........1 ..........2 NM!
7 082301-11 Actuating Arm ................................................................1 ..........1 ..........2 NM!
8 082301-55 Spacer .............................................................................1 ..........1 ..........2 NM!
9 082301-70 Left Hand Gusset ............................................................1 .......................1 NM!
10 082301-71 Right Hand Gusset .......................................................................1 ..........1 NM!
11 082301-10 Bearing Block ...........................................................................................1 NM!
12 082301-13 Stop Assembly ..........................................................................................1 NM!
13 ................................................................................................................... X
14 082301-60 Torque Tube – Left Side .................................................1 .......................1 NM!
15 082301-61 Torque Tube – Right Side ............................................................1 ..........1 NM!
16 082301-12 Handle Assembly ......................................................................................1 NM!
17 082301-51 Block .........................................................................................................1 NM!
18 082300-42 Up Stop ...........................................................................1 ..........1 ..........2 NM!
19 082300-23 Filler Strip .......................................................................1 ..........1 ..........2 NM!
20 082300-14 Left Hand Blanket Strip ..................................................1 .......................1 NM!
21 082300-15 Right Hand Blanket Strip .............................................................1 ..........1 NM!
22 082301-68 Upper Failing (Push Rod) ...............................................1 ..........1 ..........2 NM!
23 586241-2 Root Fairing – Left Hand ................................................1 .......................1 NM!
24 586241-3 Root Fairing – Right Hand ..........................................................1 ..........1 NM!
25 AN3-13A Bolt ..........................................................................................................10 0.3
26 AN3-12A Bolt ..........................................................................................................14 0.16
27 AN4-11A Bolt ...........................................................................................................2 0.32
28 AN4-14A Bolt ...........................................................................................................2 0.3
29 AN23-17 Bolt ...........................................................................................................4 2.18
30 AN320-3 Nut ............................................................................................................4 1
31 22A17-02 Plate Nut ...................................................................................................2 NM!
32 MS21044N3 Nut – AN365-1032 ..................................................................................16 0.24
33 MS21044N4 Nut – AN365-428 .....................................................................................4 0.3
34 MS21047-L3 Plate Nut – AN366-F1032 ........................................................................6 0.36
35 AN380-1-1 Cotter Pin ..................................................................................................1 NM!
36 AN380-2-2 Cotter Pin ..................................................................................................4 0.04
37 AN426-AD3 Rivet .........................................................................................................16 NM!
38 AN456-AD3 Rivet .........................................................................................................30 NM!
39 AN456-AD4 Rivet ........................................................................................................228 NM!
40 NAS1149F0363P Washer – AN960-10 .................................................................................24 0.04
41 NAS1149F0463P Washer – AN960-416 ................................................................................4 0.06
42 NAS1149F0432P Washer – AN960-416L .............................................................................2 0.04
43 NAS1149FN832P Washer ......................................................................................................1 0.04
44 4X1/4-TRA-SS P.K. Screws Type “A” #4x¼ ....................................................................47 0.1
45 082301-75 Down Stop ......................................................................1 ..........1 ..........2 NM!
46 181365 Tab ............................................................................................................1 NM!
47 486333-3 Placard ......................................................................................................1 NM!
48 082301-11 Position Indicators ....................................................................................1 NM!
