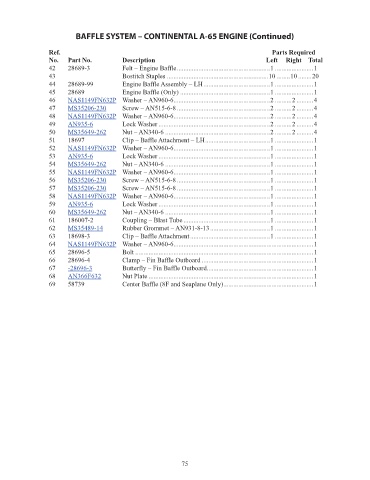

Page 78 - Luscombe Silvaire Model 8 Master Parts List
P. 78
BAFFLE SYSTEM – CONTINENTAL A-65 ENGINE (Continued)
Ref. Parts Required
No. Part No. Description Left Right Total
42 28689-3 Felt – Engine Baffle ........................................................1 .......................1 NM!
43 Bostitch Staples .............................................................10 ........10 ........20 X
44 28689-99 Engine Baffle Assembly – LH ........................................1 .......................1 NM!
45 28689 Engine Baffle (Only) ......................................................1 .......................1 NM!
46 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
47 MS35206-230 Screw – AN515-6-8 ........................................................2 ..........2 ..........4 0.08
48 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
49 AN935-6 Lock Washer ...................................................................2 ..........2 ..........4 0.02
50 MS35649-262 Nut – AN340-6 ...............................................................2 ..........2 ..........4 0.14
51 18697 Clip – Baffle Attachment – LH .......................................1 .......................1 NM!
52 NAS1149FN632P Washer – AN960-6 ..........................................................1 .......................1 0.06
53 AN935-6 Lock Washer ...................................................................1 .......................1 0.02
54 MS35649-262 Nut – AN340-6 ...............................................................1 .......................1 0.14
55 NAS1149FN632P Washer – AN960-6 ..........................................................1 .......................1 0.06
56 MS35206-230 Screw – AN515-6-8 ........................................................1 .......................1 0.08
57 MS35206-230 Screw – AN515-6-8 ........................................................1 .......................1 0.08
58 NAS1149FN632P Washer – AN960-6 ..........................................................1 .......................1 0.06
59 AN935-6 Lock Washer ...................................................................1 .......................1 0.02
60 MS35649-262 Nut – AN340-6 ...............................................................1 .......................1 0.14
61 186007-2 Coupling – Blast Tube ....................................................1 .......................1 NM!
62 MS35489-14 Rubber Grommet – AN931-8-13 ....................................1 .......................1 0.78
63 18698-3 Clip – Baffle Attachment ................................................1 .......................1 NM!
64 NAS1149FN632P Washer – AN960-6 ....................................................................................1 0.06
65 28696-5 Bolt ...........................................................................................................1 NM!
66 28696-4 Clamp – Fin Baffle Outboard ...................................................................1 NM!
67 -28696-3 Butterfly – Fin Baffle Outboard ................................................................1 42.78
68 AN366F632 Nut Plate ...................................................................................................1 1
69 58739 Center Baffle (8F and Seaplane Only) ......................................................1 NM!
