Page 52 - Luscombe Silvaire Model 8 Master Parts List

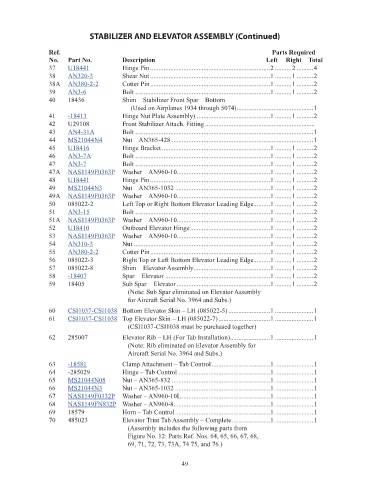

STABILIZER AND ELEVATOR ASSEMBLY (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
37 U18441 Hinge Pin ........................................................................2 ..........2 ..........4 34.53
38 AN320-3 Shear Nut ........................................................................1 ..........1 ..........2 1
38A AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
39 AN3-6 Bolt .................................................................................1 ..........1 ..........2 0.52
40 18436 Shim – Stabilizer Front Spar – Bottom NM!
(Used on Airplanes 1934 through 5074) ..............................................1 X
41 -18413 Hinge Nut Plate Assembly) ............................................1 ..........1 ..........2 14.86
42 U29108 Front Stabilizer Attach. Fitting .................................................................. NM!
43 AN4-31A Bolt ...........................................................................................................1 0.92
44 MS21044N4 Nut – AN365-428 .....................................................................................1 0.3
45 U18416 Hinge Bracket .................................................................1 ..........1 ..........2 25.17
46 AN3-7A Bolt .................................................................................1 ..........1 ..........2 0.52
47 AN3-7 Bolt .................................................................................1 ..........1 ..........2 1
47A NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
48 U18441 Hinge Pin ........................................................................1 ..........1 ..........2 34.53
49 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
49A NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
50 085022-2 Left Top or Right Bottom Elevator Leading Edge..........1 ..........1 ..........2 NM!
51 AN3-15 Bolt .................................................................................1 ..........1 ..........2 0.84
51A NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
52 U18410 Outboard Elevator Hinge ................................................1 ..........1 ..........2 135.25
53 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
54 AN310-3 Nut ..................................................................................1 ..........1 ..........2 1.5
55 AN380-2-2 Cotter Pin ........................................................................1 ..........1 ..........2 0.04
56 085022-3 Right Top or Left Bottom Elevator Leading Edge..........1 ..........1 ..........2 NM!
57 085022-8 Shim – Elevator Assembly ..............................................1 ..........1 ..........2 NM!
58 -18407 Spar – Elevator ...............................................................1 ..........1 ..........2 83.69
59 18405 Sub Spar – Elevator ........................................................1 ..........1 ..........2 NM!
(Note: Sub Spar eliminated on Elevator Assembly
for Aircraft Serial No. 3964 and Subs.)
60 CSI1037-CSI1038 Bottom Elevator Skin – LH (085022-5) .........................1 .......................1 722.64
61 CSI1037-CSI1038 Top Elevator Skin – LH (085022-7) ...............................1 .......................1 722.64
(CSI1037-CSI1038 must be purchased together)

62 285007 Elevator Rib – LH (For Tab Installation) ........................1 .......................1 NM!
(Note: Rib eliminated on Elevator Assembly for
Aircraft Serial No. 3964 and Subs.)
63 -18581 Clamp Attachment – Tab Control ...................................1 .......................1 244.45
64 -285029 Hinge – Tab Control .......................................................1 .......................1 NM!
65 MS21044N08 Nut – AN365-832 ...........................................................1 .......................1 0.24
66 MS21044N3 Nut – AN365-1032 .........................................................1 .......................1 0.24
67 NAS1149F0332P Washer – AN960-10L .....................................................1 .......................1 0.04
68 NAS1149FN832P Washer – AN960-8 ..........................................................1 .......................1 0.04
69 18579 Horn – Tab Control .........................................................1 .......................1 NM!
70 485023 Elevator Trim Tab Assembly – Complete .......................1 .......................1 NM!
(Assembly includes the following parts from
Figure No. 12: Parts Ref. Nos. 64, 65, 66, 67, 68,
69, 71, 72, 73, 73A, 74 75, and 76.)

49
