Page 49 - Luscombe Silvaire Model 8 Master Parts List
P. 49

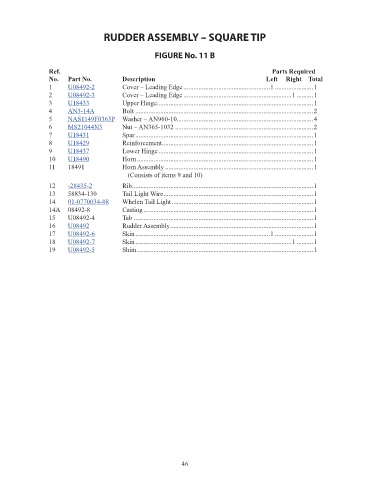

RUDDER ASSEMBLY – SQUARE TIP
FIGURE No. 11 B
Ref. Parts Required
No. Part No. Description Left Right Total
1 U08492-2 Cover – Leading Edge ....................................................1 .......................1 63.77
2 U08492-3 Cover – Leading Edge .................................................................1 ..........1 63.77
3 U18433 Upper Hinge ..............................................................................................1 135.86
4 AN3-14A Bolt ...........................................................................................................2 0.18
5 NAS1149F0363P Washer – AN960-10 ..................................................................................4 0.04
6 MS21044N3 Nut – AN365-1032 ...................................................................................2 0.24
7 U18431 Spar ...........................................................................................................1 61.89
8 U18429 Reinforcement ...........................................................................................1 108.35
9 U18437 Lower Hinge .............................................................................................1 77.8
10 U18490 Horn ..........................................................................................................1 134.04
11 18491 Horn Assembly .........................................................................................1 NM!
(Consists of items 9 and 10)
12 -28435-2 Rib .............................................................................................................1 60.94
13 58834-130 Tail Light Wire ..........................................................................................1 NM!
14 01-0770034-08 Whelen Tail Light .....................................................................................1 223.08
14A 08492-8 Casting ......................................................................................................1 NM!
15 U08492-4 Tab ............................................................................................................1 NM!
16 U08492 Rudder Assembly ......................................................................................1 2855.28
17 U08492-6 Skin .................................................................................1 .......................1 536.98
18 U08492-7 Skin ..............................................................................................1 ..........1 536.98
19 U08492-5 Shim ..........................................................................................................1 36.05
