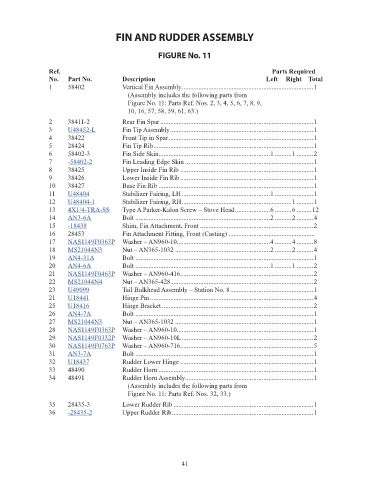

Page 44 - Luscombe Silvaire Model 8 Master Parts List

FIN AND RUDDER ASSEMBLY

FIGURE No. 11

Ref. Parts Required
No. Part No. Description Left Right Total
1 58402 Vertical Fin Assembly ...............................................................................1 NM!
(Assembly includes the following parts from
Figure No. 11: Parts Ref. Nos. 2, 3, 4, 5, 6, 7, 8, 9,
10, 16, 57, 58, 59, 61, 63.)
2 38411-2 Rear Fin Spar ............................................................................................1 NM!
3 U48452-L Fin Tip Assembly ......................................................................................1 491.65
4 38422 Front Tip in Spar .......................................................................................1 NM!
5 28424 Fin Tip Rib ................................................................................................1 NM!
6 58402-3 Fin Side Skin ...................................................................1 ..........1 ..........2 NM!
7 -58402-2 Fin Leading Edge Skin .............................................................................1 102.9
8 38425 Upper Inside Fin Rib ................................................................................1 NM!
9 38426 Lower Inside Fin Rib ................................................................................1 NM!
10 38427 Base Fin Rib .............................................................................................1 NM!
11 U48404 Stabilizer Fairing, LH .....................................................1 .......................1 110.62
12 U48404-1 Stabilizer Fairing, RH ..................................................................1 ..........1 110.62
13 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head .....................6 ..........6 .........12 0.1
14 AN3-6A Bolt .................................................................................2 ..........2 ..........4 0.16
15 -18438 Shim, Fin Attachment, Front ....................................................................2 8.52
16 28453 Fin Attachment Fitting, Front (Casting) .................................................... NM!
17 NAS1149F0363P Washer – AN960-10 ........................................................4 ..........4 ..........8 0.04
18 MS21044N3 Nut – AN365-1032 .........................................................2 ..........2 ..........4 0.24
19 AN4-31A Bolt ...........................................................................................................1 0.92
20 AN4-6A Bolt .................................................................................1 ..........1 ..........2 0.22
21 NAS1149F0463P Washer – AN960-416 ................................................................................2 0.06
22 MS21044N4 Nut – AN365-428 .....................................................................................2 0.3
23 U49099 Tail Bulkhead Assembly – Station No. 8 ..................................................1 410.86
21 U18441 Hinge Pin ..................................................................................................4 34.53
25 U18416 Hinge Bracket ...........................................................................................2 25.17
26 AN4-7A Bolt ...........................................................................................................1 0.18
27 MS21044N3 Nut – AN365-1032 ...................................................................................1 0.24
28 NAS1149F0363P Washer – AN960-10 ..................................................................................1 0.04
29 NAS1149F0332P Washer – AN960-10L ...............................................................................2 0.04
30 NAS1149F0763P Washer – AN960-716 ................................................................................5 0.17
31 AN3-7A Bolt ...........................................................................................................1 0.52
32 U18437 Rudder Lower Hinge ................................................................................1 77.8
33 48490 Rudder Horn .............................................................................................1 NM!
34 48491 Rudder Horn Assembly .............................................................................1 NM!
(Assembly includes the following parts from
Figure No. 11: Parts Ref. Nos. 32, 33.)
35 28435-3 Lower Rudder Rib ....................................................................................1 NM!
36 -28435-2 Upper Rudder Rib .....................................................................................1 60.94

41
