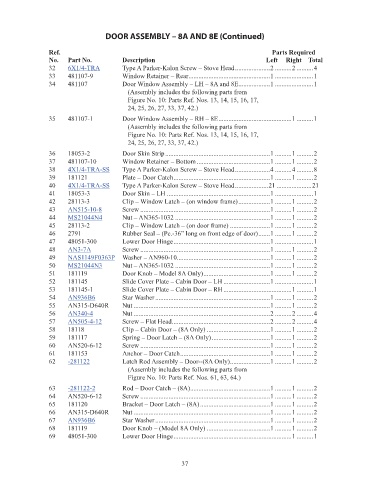

DOOR ASSEMBLY – 8A AND 8E (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
32 6X1/4-TRA Type A Parker-Kalon Screw – Stove Head .....................2 ..........2 ..........4 0.1
33 481107-9 Window Retainer – Rear .................................................1 .......................1 NM!
34 481107 Door Window Assembly – LH – 8A and 8E ...................1 .......................1 NM!
(Assembly includes the following parts from
Figure No. 10: Parts Ref. Nos. 13, 14, 15, 16, 17,
24, 25, 26, 27, 33, 37, 42.)

35 481107-1 Door Window Assembly – RH – 8E ............................................1 ..........1 NM!
(Assembly includes the following parts from
Figure No. 10: Parts Ref. Nos. 13, 14, 15, 16, 17,
24, 25, 26, 27, 33, 37, 42.)

36 18053-2 Door Skin Strip ...............................................................1 ..........1 ..........2 NM!
37 481107-10 Window Retainer – Bottom ............................................1 ..........1 ..........2 NM!
38 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head .....................4 ..........4 ..........8 0.1
39 181121 Plate – Door Catch ..........................................................1 ..........1 ..........2 NM!
40 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head ....................21 .....................21 0.1
41 18053-3 Door Skin – LH ..............................................................1 .......................1 NM!
42 28113-3 Clip – Window Latch – (on window frame) ...................1 ..........1 ..........2 NM!
43 AN515-10-8 Screw ..............................................................................1 ..........1 ..........2 0.18
44 MS21044N4 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.3
45 28113-2 Clip – Window Latch – (on door frame) ........................1 ..........1 ..........2 NM!
46 2791 Rubber Seal – (Pc.-36” long on front edge of door) .......1 ..........1 ..........2 NM!
47 48051-300 Lower Door Hinge ..........................................................1 .......................1 NM!
48 AN3-7A Screw ..............................................................................1 ..........1 ..........2 0.52
49 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
50 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
51 181119 Door Knob – Model 8A Only) ........................................1 ..........1 ..........2 NM!
52 181145 Slide Cover Plate – Cabin Door – LH ............................1 .......................1 NM!
53 181145-1 Slide Cover Plate – Cabin Door – RH .........................................1 ..........1 NM!
54 AN936B6 Star Washer .....................................................................1 ..........1 ..........2 0.05
55 AN315-D640R Nut ..................................................................................1 ..........1 ..........2 NM!
56 AN340-4 Nut ..................................................................................2 ..........2 ..........4 0.69
57 AN505-4-12 Screw – Flat Head ...........................................................2 ..........2 ..........4 0.45
58 18118 Clip – Cabin Door – (8A Only) ......................................1 ..........1 ..........2 NM!
59 181117 Spring – Door Latch – (8A Only) ...................................1 ..........1 ..........2 NM!
60 AN520-6-12 Screw ..............................................................................1 ..........1 ..........2 NM!
61 181153 Anchor – Door Catch ......................................................1 ..........1 ..........2 NM!
62 -281122 Latch Rod Assembly – Door--(8A Only) ........................1 ..........1 ..........2 67.48
(Assembly includes the following parts from
Figure No. 10: Parts Ref. Nos. 61, 63, 64.)
63 -281122-2 Rod – Door Catch – (8A) ................................................1 ..........1 ..........2 50.98
64 AN520-6-12 Screw ..............................................................................1 ..........1 ..........2 NM!
65 181120 Bracket – Door Latch – (8A) ..........................................1 ..........1 ..........2 NM!
66 AN315-D640R Nut ..................................................................................1 ..........1 ..........2 NM!
67 AN936B6 Star Washer .....................................................................1 ..........1 ..........2 0.05
68 181119 Door Knob – (Model 8A Only) ......................................1 ..........1 ..........2 NM!
69 48051-300 Lower Door Hinge .......................................................................1 ..........1 NM!

37
