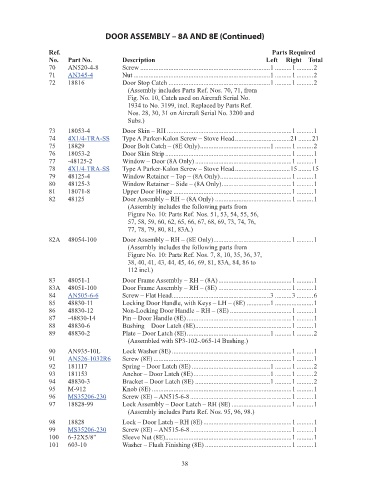

DOOR ASSEMBLY – 8A AND 8E (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
70 AN520-4-8 Screw ..............................................................................1 ..........1 ..........2 NM!
71 AN345-4 Nut ..................................................................................1 ..........1 ..........2 0.2
72 18816 Door Stop Catch .............................................................1 ..........1 ..........2 NM!
(Assembly includes Parts Ref. Nos. 70, 71, from
Fig. No. 10, Catch used on Aircraft Serial No.
1934 to No. 3199, incl. Replaced by Parts Ref.
Nos. 28, 30, 31 on Aircraft Serial No. 3200 and
Subs.)
73 18053-4 Door Skin – RH ...........................................................................1 ..........1 NM!
74 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head .................................21 ........21 0.1
75 18829 Door Bolt Catch – (8E Only) ..........................................1 ..........1 ..........2 NM!
76 18053-2 Door Skin Strip ............................................................................1 ..........1 NM!
77 -48125-2 Window – Door (8A Only) ..........................................................1 ..........1 NM!
78 4X1/4-TRA-SS Type A Parker-Kalon Screw – Stove Head .................................15 ........15 0.1
79 48125-4 Window Retainer – Top – (8A Only) ...........................................1 ..........1 NM!
80 48125-3 Window Retainer – Side – (8A Only) ..........................................1 ..........1 NM!
81 18071-8 Upper Door Hinge .......................................................................1 ..........1 NM!
82 48125 Door Assembly – RH – (8A Only) ..............................................1 ..........1 NM!
(Assembly includes the following parts from
Figure No. 10: Parts Ref. Nos. 51, 53, 54, 55, 56,
57, 58, 59, 60, 62, 65, 66, 67, 68, 69, 73, 74, 76,
77, 78, 79, 80, 81, 83A.)
82A 48054-100 Door Assembly – RH – (8E Only) ...............................................1 ..........1 NM!
(Assembly includes the following parts from
Figure No. 10: Parts Ref. Nos. 7, 8, 10, 35, 36, 37,
38, 40, 41, 43, 44, 45, 46, 69, 81, 83A, 84, 86 to
112 incl.)
83 48051-1 Door Frame Assembly – RH – (8A) ............................................1 ..........1 NM!
83A 48051-100 Door Frame Assembly – RH – (8E) ............................................1 ..........1 NM!
84 AN505-6-6 Screw – Flat Head ...........................................................3 ..........3 ..........6 0.14
85 48830-11 Locking Door Handle, with Keys – LH – (8E) ..............1 .......................1 NM!
86 48830-12 Non-Locking Door Handle – RH – (8E) .....................................1 ..........1 NM!
87 -48830-14 Pin – Door Handle (8E) ...............................................................1 ..........1 NM!
88 48830-6 Bushing – Door Latch (8E) ..........................................................1 ..........1 NM!
89 48830-2 Plate – Door Latch (8E) ..................................................1 ..........1 ..........2 NM!
(Assembled with SP3-102-.065-14 Bushing.)

90 AN935-10L Lock Washer (8E) ........................................................................1 ..........1 NM!
91 AN526-1032R6 Screw (8E) ...................................................................................1 ..........1 0.16
92 181117 Spring – Door Latch (8E) ...............................................1 ..........1 ..........2 NM!
93 181153 Anchor – Door Latch (8E) ..............................................1 ..........1 ..........2 NM!
94 48830-3 Bracket – Door Latch (8E) .............................................1 ..........1 ..........2 NM!
95 M-912 Knob (8E) ....................................................................................1 ..........1 NM!
96 MS35206-230 Screw (8E) – AN515-6-8 .............................................................1 ..........1 0.08
97 18828-99 Lock Assembly – Door Latch – RH (8E) ....................................1 ..........1 NM!
(Assembly includes Parts Ref. Nos. 95, 96, 98.)
98 18828 Lock – Door Latch – RH (8E) .....................................................1 ..........1 NM!
99 MS35206-230 Screw (8E) – AN515-6-8 .............................................................1 ..........1 0.08
100 6-32X5/8” Sleeve Nut (8E) ............................................................................1 ..........1 NM!
101 603-10 Washer – Flush Finishing (8E) ....................................................1 ..........1 NM!

38
