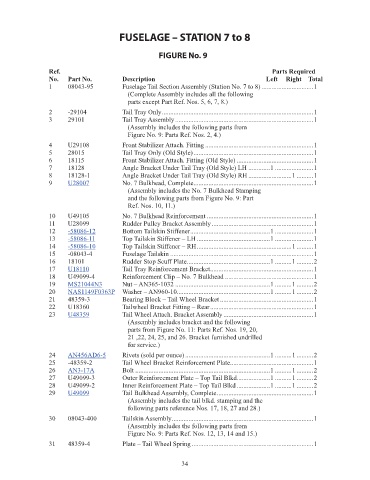

FUSELAGE – STATION 7 to 8

FIGURE No. 9

Ref. Parts Required
No. Part No. Description Left Right Total
1 08043-95 Fuselage Tail Section Assembly (Station No. 7 to 8) ...............................1 NM!
(Complete Assembly includes all the following
parts except Part Ref. Nos. 5, 6, 7, 8.)
2 -29104 Tail Tray Only ...........................................................................................1 NM!
3 29101 Tail Tray Assembly ...................................................................................1 NM!
(Assembly includes the following parts from
Figure No. 9: Parts Ref. Nos. 2, 4.)
4 U29108 Front Stabilizer Attach. Fitting .................................................................1 NM!
5 28015 Tail Tray Only (Old Style) ........................................................................1 NM!
6 18115 Front Stabilizer Attach. Fitting (Old Style) ..............................................1 NM!
7 18128 Angle Bracket Under Tail Tray (Old Style) LH .............1 .......................1 NM!
8 18128-1 Angle Bracket Under Tail Tray (Old Style) RH ..........................1 ..........1 NM!
9 U28007 No. 7 Bulkhead, Complete ........................................................................1 684.36
(Assembly includes the No. 7 Bulkhead Stamping
and the following parts from Figure No. 9: Part
Ref. Nos. 10, 11.)
10 U49105 No. 7 Bulkhead Reinforcement ................................................................1 NM!
11 U28099 Rudder Pulley Bracket Assembly .............................................................1 NM!
12 -58086-12 Bottom Tailskin Stiffener ................................................1 .......................1 69.09
13 -58086-11 Top Tailskin Stiffener – LH ............................................1 .......................1 69.09
14 -58086-10 Top Tailskin Stiffener – RH .........................................................1 ..........1 69.09
15 -08043-4 Fuselage Tailskin ......................................................................................1 NM!
16 18101 Rudder Stop Scuff Plate ..................................................1 ..........1 ..........2 NM!
17 U18110 Tail Tray Reinforcement Bracket ..............................................................1 71
18 U49099-4 Reinforcement Clip – No. 7 Bulkhead .....................................................1 NM!
19 MS21044N3 Nut – AN365-1032 .........................................................1 ..........1 ..........2 0.24
20 NAS1149F0363P Washer – AN960-10 ........................................................1 ..........1 ..........2 0.04
21 48359-3 Bearing Block – Tail Wheel Bracket ........................................................1 NM!
22 U18360 Tailwheel Bracket Fitting – Rear ..............................................................1 NM!
23 U48359 Tail Wheel Attach. Bracket Assembly ......................................................1 452.15
(Assembly includes bracket and the following
parts from Figure No. 11: Parts Ref. Nos. 19, 20,
21 ,22, 24, 25, and 26. Bracket furnished undrilled
for service.)
24 AN456AD6-5 Rivets (sold per ounce) ...................................................1 ..........1 ..........2 2.27
25 -48359-2 Tail Wheel Bracket Reinforcement Plate ..................................................1 NM!
26 AN3-17A Bolt .................................................................................1 ..........1 ..........2 0.28
27 U49099-3 Outer Reinforcement Plate – Top Tail Blkd....................1 ..........1 ..........2 NM!
28 U49099-2 Inner Reinforcement Plate – Top Tail Blkd ....................1 ..........1 ..........2 NM!
29 U49099 Tail Bulkhead Assembly, Complete ..........................................................1 410.86
(Assembly includes the tail blkd. stamping and the
following parts reference Nos. 17, 18, 27 and 28.)
30 08043-400 Tailskin Assembly .....................................................................................1 NM!
(Assembly includes the following parts from
Figure No. 9: Parts Ref. Nos. 12, 13, 14 and 15.)

31 48359-4 Plate – Tail Wheel Spring .........................................................................1 NM!
