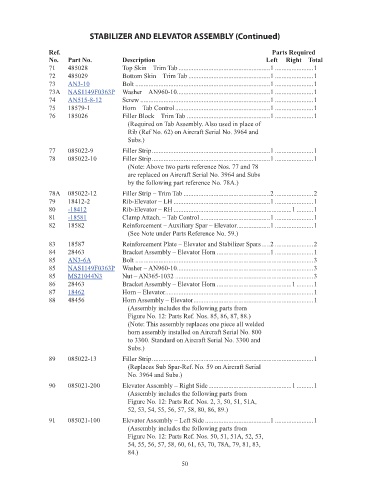

Page 53 - Luscombe Silvaire Model 8 Master Parts List

STABILIZER AND ELEVATOR ASSEMBLY (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
71 485028 Top Skin – Trim Tab .......................................................1 .......................1 NM!
72 485029 Bottom Skin – Trim Tab .................................................1 .......................1 NM!
73 AN3-10 Bolt .................................................................................1 .......................1 0.72
73A NAS1149F0363P Washer – AN960-10 ........................................................1 .......................1 0.04
74 AN515-8-12 Screw ..............................................................................1 .......................1 0.09
75 18579-1 Horn – Tab Control .........................................................1 .......................1 NM!
76 185026 Filler Block – Trim Tab ..................................................1 .......................1 NM!
(Required on Tab Assembly. Also used in place of
Rib (Ref No. 62) on Aircraft Serial No. 3964 and
Subs.)
77 085022-9 Filler Strip .......................................................................1 .......................1 NM!
78 085022-10 Filler Strip .......................................................................1 .......................1 NM!
(Note: Above two parts reference Nos. 77 and 78
are replaced on Aircraft Serial No. 3964 and Subs
by the following part reference No. 78A.)
78A 085022-12 Filler Strip – Trim Tab ....................................................2 .......................2 NM!
79 18412-2 Rib-Elevator – LH ..........................................................1 .......................1 NM!
80 -18412 Rib-Elevator – RH .......................................................................1 ..........1 134.6
81 -18581 Clamp Attach. – Tab Control ..........................................1 .......................1 244.45
82 18582 Reinforcement – Auxiliary Spar – Elevator ....................1 .......................1 NM!
(See Note under Parts Reference No. 59.)
83 18587 Reinforcement Plate – Elevator and Stabilizer Spars .....2 .......................2 NM!
84 28463 Bracket Assembly – Elevator Horn ................................1 .......................1 NM!
85 AN3-6A Bolt ...........................................................................................................3 0.16
85 NAS1149F0363P Washer – AN960-10 ..................................................................................3 0.04
85 MS21044N3 Nut – AN365-1032 ...................................................................................3 0.24
86 28463 Bracket Assembly – Elevator Horn .............................................1 ..........1 NM!
87 18462 Horn – Elevator .........................................................................................1 14.38
88 48456 Horn Assembly – Elevator ........................................................................1 NM!
(Assembly includes the following parts from
Figure No. 12: Parts Ref. Nos. 85, 86, 87, 88.)
(Note: This assembly replaces one piece all welded
horn assembly installed on Aircraft Serial No. 800
to 3300. Standard on Aircraft Serial No. 3300 and
Subs.)
89 085022-13 Filler Strip .................................................................................................1 NM!
(Replaces Sub Spar-Ref. No. 59 on Aircraft Serial
No. 3964 and Subs.)
90 085021-200 Elevator Assembly – Right Side ..................................................1 ..........1 NM!
(Assembly includes the following parts from
Figure No. 12: Parts Ref. Nos. 2, 3, 50, 51, 51A,
52, 53, 54, 55, 56, 57, 58, 80, 86, 89.)
91 085021-100 Elevator Assembly – Left Side .......................................1 .......................1 NM!
(Assembly includes the following parts from
Figure No. 12: Parts Ref. Nos. 50, 51, 51A, 52, 53,
54, 55, 56, 57, 58, 60, 61, 63, 70, 78A, 79, 81, 83,
84.)

50
