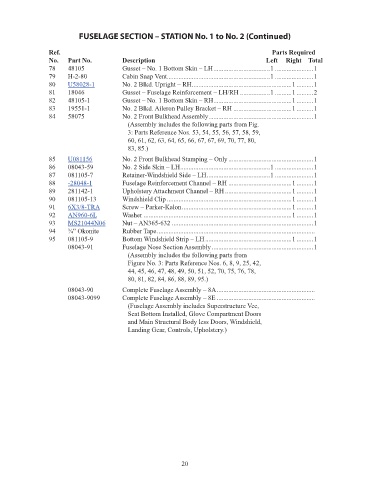

FUSELAGE SECTION – STATION No. 1 to No. 2 (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
78 48105 Gusset – No. 1 Bottom Skin – LH ..................................1 .......................1 NM!
79 H-2-80 Cabin Snap Vent ..............................................................1 .......................1 NM!
80 U58028-1 No. 2 Blkd. Upright – RH ............................................................1 ..........1 370.14
81 18046 Gusset – Fuselage Reinforcement – LH/RH ..................1 ..........1 ..........2 NM!
82 48105-1 Gusset – No. 1 Bottom Skin – RH ...............................................1 ..........1 NM!
83 19551-1 No. 2 Blkd. Aileron Pulley Bracket – RH ...................................1 ..........1 NM!
84 58075 No. 2 Front Bulkhead Assembly ...............................................................1 NM!
(Assembly includes the following parts from Fig.
3: Parts Reference Nos. 53, 54, 55, 56, 57, 58, 59,
60, 61, 62, 63, 64, 65, 66, 67, 67, 69, 70, 77, 80,
83, 85.)
85 U081156 No. 2 Front Bulkhead Stamping – Only ...................................................1 555.03
86 08043-59 No. 2 Side Skin – LH ......................................................1 .......................1 NM!
87 081105-7 Retainer-Windshield Side – LH ......................................1 .......................1 NM!
88 -28048-1 Fuselage Reinforcement Channel – RH ......................................1 ..........1 121.56
89 281142-1 Upholstery Attachment Channel – RH ........................................1 ..........1 NM!
90 081105-13 Windshield Clip ...........................................................................1 ..........1 NM!
91 6X3/8-TRA Screw – Parker-Kalon ..................................................................1 ..........1 0.06
92 AN960-6L Washer .........................................................................................1 ..........1 0.03
93 MS21044N06 Nut – AN365-632 .....................................................................................1 0.32
94 ¾” Okonite Rubber Tape ............................................................................................... NM!
95 081105-9 Bottom Windshield Strip – LH ....................................................1 ..........1 NM!
08043-91 Fuselage Nose Section Assembly .............................................................1 NM!
(Assembly includes the following parts from
Figure No. 3: Parts Reference Nos. 6, 8, 9, 25, 42,
44, 45, 46, 47, 48, 49, 50, 51, 52, 70, 75, 76, 78,
80, 81, 82, 84, 86, 88, 89, 95.)
08043-90 Complete Fuselage Assembly – 8A ........................................................... NM!
08043-9099 Complete Fuselage Assembly – 8E ........................................................... NM!
(Fuselage Assembly includes Superstructure Vee,
Seat Bottom Installed, Glove Compartment Doors
and Main Structural Body less Doors, Windshield,
Landing Gear, Controls, Upholstery.)
