Page 21 - Luscombe Silvaire Model 8 Master Parts List

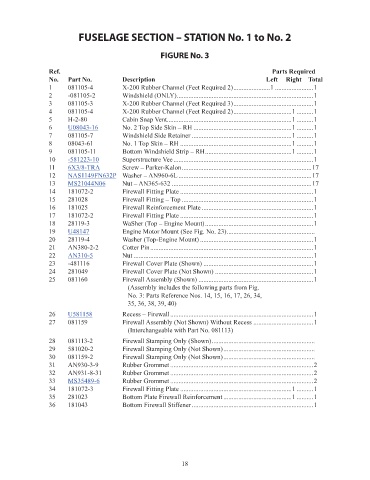

FUSELAGE SECTION – STATION No. 1 to No. 2

FIGURE No. 3

Ref. Parts Required
No. Part No. Description Left Right Total
1 081105-4 X-200 Rubber Channel (Feet Required 2) ......................1 .......................1 NM!
2 -081105-2 Windshield (ONLY) ..................................................................................1 NM!
3 081105-3 X-200 Rubber Channel (Feet Required 3) ................................................1 NM!
4 081105-4 X-200 Rubber Channel (Feet Required 2) ...................................1 ..........1 NM!
5 H-2-80 Cabin Snap Vent ...........................................................................1 ..........1 NM!
6 U08043-16 No. 2 Top Side Skin – RH ...........................................................1 ..........1 111.63
7 081105-7 Windshield Side Retainer ............................................................1 ..........1 NM!
8 08043-61 No. 1 Top Skin – RH ...................................................................1 ..........1 NM!
9 081105-11 Bottom Windshield Strip – RH ....................................................1 ..........1 NM!
10 -581223-10 Superstructure Vee ....................................................................................1 669.67
11 6X3/8-TRA Screw – Parker-Kalon ..............................................................................17 0.06
12 NAS1149FN632P Washer – AN960-6L ................................................................................17 0.06
13 MS21044N06 Nut – AN365-632 ....................................................................................17 0.32
14 181072-2 Firewall Fitting Plate ................................................................................1 NM!
15 281028 Firewall Fitting – Top ...............................................................................1 NM!
16 181025 Firewall Reinforcement Plate ...................................................................1 NM!
17 181072-2 Firewall Fitting Plate ................................................................................1 NM!
18 28119-3 WaSher (Top – Engine Mount) .................................................................1 NM!
19 U48147 Engine Motor Mount (See Fig. No. 23) ..................................................... 1847.51
20 28119-4 Washer (Top-Engine Mount) ....................................................................1 NM!
21 AN380-2-2 Cotter Pin ..................................................................................................1 0.04
22 AN310-5 Nut ............................................................................................................1 2
23 -481116 Firewall Cover Plate (Shown) ..................................................................1 NM!
24 281049 Firewall Cover Plate (Not Shown) ...........................................................1 NM!
25 081160 Firewall Assembly (Shown) .....................................................................1 NM!
(Assembly includes the following parts from Fig.
No. 3: Parts Reference Nos. 14, 15, 16, 17, 26, 34,
35, 36, 38, 39, 40)
26 U581158 Recess – Firewall ......................................................................................1 634.06
27 081159 Firewall Assembly (Not Shown) Without Recess ....................................1 NM!
(Interchangeable with Part No. 081113)
28 081113-2 Firewall Stamping Only (Shown) .............................................................. NM!
29 581020-2 Firewall Stamping Only (Not Shown) ....................................................... NM!
30 081159-2 Firewall Stamping Only (Not Shown) ....................................................... NM!
31 AN930-3-9 Rubber Grommet ......................................................................................2 NM!
32 AN931-8-31 Rubber Grommet ......................................................................................2 NM!
33 MS35489-6 Rubber Grommet ......................................................................................2 0.4
34 181072-3 Firewall Fitting Plate ...................................................................1 ..........1 NM!
35 281023 Bottom Plate Firewall Reinforcement .........................................1 ..........1 NM!
36 181043 Bottom Firewall Stiffener .........................................................................1 NM!
