Page 25 - Luscombe Silvaire Model 8 Master Parts List

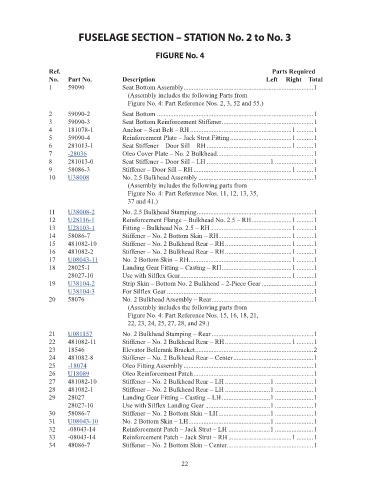

FUSELAGE SECTION – STATION No. 2 to No. 3

FIGURE No. 4

Ref. Parts Required
No. Part No. Description Left Right Total
1 59090 Seat Bottom Assembly ..............................................................................1 NM!
(Assembly includes the following Parts from
Figure No. 4: Part Reference Nos. 2, 3, 52 and 55.)
2 59090-2 Seat Bottom ..............................................................................................1 NM!
3 59090-3 Seat Bottom Reinforcement Stiffener .......................................................1 NM!
4 181078-1 Anchor – Seat Belt – RH .............................................................1 ..........1 NM!
5 59090-4 Reinforcement Plate – Jack Strut Fitting .....................................1 ..........1 NM!
6 281013-1 Seat Stiffener – Door Sill – RH ...................................................1 ..........1 NM!
7 -28036 Oleo Cover Plate – No. 2 Bulkhead ..........................................................1 179.96
8 281013-0 Seat Stiffener – Door Sill – LH ......................................1 .......................1 NM!
9 58086-3 Stiffener – Door Sill – RH ...........................................................1 ..........1 NM!
10 U38008 No. 2.5 Bulkhead Assembly .....................................................................1 847.6
(Assembly includes the following parts from
Figure No. 4: Part Reference Nos. 11, 12, 13, 35,
37 and 41.)

11 U38008-2 No. 2.5 Bulkhead Stamping ......................................................................1 312.01
12 U28116-1 Reinforcement Flange – Bulkhead No. 2.5 – RH ........................1 ..........1 43.71
13 U28103-1 Fitting – Bulkhead No. 2.5 – RH .................................................1 ..........1 75.53
14 58086-7 Stiffener – No. 2 Bottom Skin – RH ............................................1 ..........1 NM!
15 481082-10 Stiffener – No. 2 Bulkhead Rear – RH ........................................1 ..........1 NM!
16 481082-2 Stiffener – No. 2 Bulkhead Rear – RH ........................................1 ..........1 NM!
17 U08043-11 No. 2 Bottom Skin – RH ..............................................................1 ..........1 1178.34
18 28025-1 Landing Gear Fitting – Casting – RH ..........................................1 ..........1 NM!
28027-10 Use with Silflex Gear ...................................................................1 ..........1 NM!
19 U38104-2 Strip Skin – Bottom No. 2 Bulkhead – 2-Piece Gear ...............................1 232.72
U38104-3 For Silflex Gear ........................................................................................1 195.37
20 58076 No. 2 Bulkhead Assembly – Rear .............................................................1 NM!
(Assembly includes the following parts from
Figure No. 4: Part Reference Nos. 15, 16, 18, 21,
22, 23, 24, 25, 27, 28, and 29.)
21 U081157 No. 2 Bulkhead Stamping – Rear .............................................................1 334.58
22 481082-11 Stiffener – No. 2 Bulkhead Rear – RH ........................................1 ..........1 NM!
23 18546 Elevator Bellcrank Bracket .......................................................................2 NM!
24 481082-8 Stiffener – No. 2 Bulkhead Rear – Center ................................................1 NM!
25 -18074 Oleo Fitting Assembly ..............................................................................1 152.78
26 U18089 Oleo Reinforcement Patch ........................................................................1 89.45
27 481082-10 Stiffener – No. 2 Bulkhead Rear – LH ...........................1 .......................1 NM!
28 481082-1 Stiffener – No. 2 Bulkhead Rear – LH ...........................1 .......................1 NM!
29 28027 Landing Gear Fitting – Casting – LH .............................1 .......................1 NM!
28027-10 Use with Silflex Landing Gear .......................................1 .......................1 NM!
30 58086-7 Stiffener – No. 2 Bottom Skin – LH ...............................1 .......................1 NM!
31 U08043-10 No. 2 Bottom Skin – LH .................................................1 .......................1 1178.34
32 -08043-14 Reinforcement Patch – Jack Strut – LH .........................1 .......................1 NM!
33 -08043-14 Reinforcement Patch – Jack Strut – RH ......................................1 ..........1 NM!
34 48086-7 Stiffener – No. 2 Bottom Skin – Center ....................................................1 NM!

22
