Page 15 - Luscombe Silvaire Model 8 Master Parts List

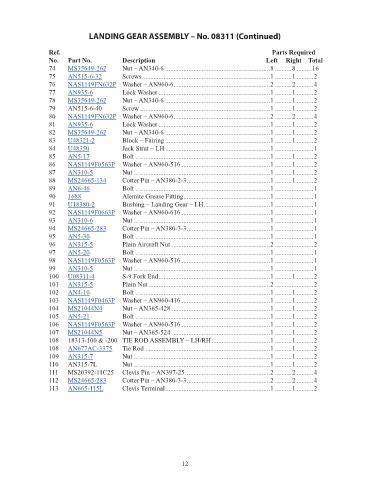

LANDING GEAR ASSEMBLY – No. 08311 (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
74 MS35649-262 Nut – AN340-6 ...............................................................8 ..........8 .........16 0.14
75 AN515-6-32 Screws .............................................................................1 ..........1 ..........2 0.14
76 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
77 AN935-6 Lock Washer ...................................................................1 ..........1 ..........2 0.02
78 MS35649-262 Nut – AN340-6 ...............................................................1 ..........1 ..........2 0.14
79 AN515-6-40 Screw ..............................................................................1 ..........1 ..........2 NM!
80 NAS1149FN632P Washer – AN960-6 ..........................................................2 ..........2 ..........4 0.06
81 AN935-6 Lock Washer ...................................................................1 ..........1 ..........2 0.02
82 MS35649-262 Nut – AN340-6 ...............................................................1 ..........1 ..........2 0.14
83 U48321-2 Block – Fairing ...............................................................1 ..........1 ..........2 64.63
84 U48350 Jack Strut – LH ...............................................................1 .......................1 778.91
85 AN5-17 Bolt .................................................................................1 ..........1 ..........2 1.64
86 NAS1149F0563P Washer – AN960-516 ......................................................1 ..........1 ..........2 0.08
87 AN310-5 Nut ..................................................................................1 ..........1 ..........2 2
88 MS24665-134 Cotter Pin – AN380-2-3 ..................................................1 ..........1 ..........2 0.06
89 AN6-46 Bolt .................................................................................1 .......................1 6.2
90 1688 Alemite Grease Fitting ....................................................1 .......................1 2.26
91 U18380-2 Bushing – Landing Gear – LH ........................................1 .......................1 11.76
92 NAS1149F0663P Washer – AN960-616 ......................................................1 .......................1 0.11
93 AN310-6 Nut ..................................................................................1 .......................1 1.8
94 MS24665-283 Cotter Pin – AN380-3-3 ..................................................1 .......................1 0.04
95 AN5-30 Bolt .................................................................................1 .......................1 1.7
96 AN315-5 Plain Aircraft Nut ............................................................2 .......................2 0.26
97 AN5-20 Bolt .................................................................................1 .......................1 0.82
98 NAS1149F0563P Washer – AN960-516 ......................................................1 .......................1 0.08
99 AN310-5 Nut ..................................................................................1 .......................1 2
100 U08311-4 S-9 Fork End ...................................................................1 ..........1 ..........2 79.52
101 AN315-5 Plain Nut .........................................................................2 .......................2 0.26
102 AN4-10 Bolt .................................................................................1 ..........1 ..........2 0.78
103 NAS1149F0463P Washer – AN960-416 ......................................................1 ..........1 ..........2 0.06
104 MS21044N4 Nut – AN365-428 ...........................................................1 ..........1 ..........2 0.3
105 AN5-21 Bolt .................................................................................1 ..........1 ..........2 1.5
106 NAS1149F0563P Washer – AN960-516 ......................................................1 ..........1 ..........2 0.08
107 MS21044N5 Nut – AN365-524 ...........................................................1 ..........1 ..........2 0.4
108 18313-100 & -200 TIE ROD ASSEMBLY – LH/RH ...................................1 ..........1 ..........2 NM!
108 AN677AC-3375 Tie Rod ...........................................................................1 ..........1 ..........2 363.36
109 AN315-7 Nut ..................................................................................1 ..........1 ..........2 0.62
110 AN315-7L Nut ..................................................................................1 ..........1 ..........2 NM!
111 MS20392-11C25 Clevis Pin – AN397-25 ...................................................2 ..........2 ..........4 NM!
112 MS24665-283 Cotter Pin – AN380-3-3 ..................................................2 ..........2 ..........4 0.04
113 AN665-115L Clevis Terminal ...............................................................1 ..........1 ..........2 126.89

12
