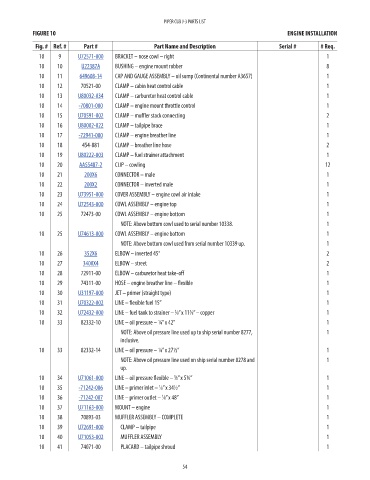

PIPER CUB J-3 PARTS LIST
FIGURE 10 ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
10 9 U72571-000 BRACKET – nose cowl – right 1 108.72
10 10 U22387A BUSHING – engine mount rubber 8 6.56
10 11 649608-14 CAP AND GAUGE ASSEMBLY – oil sump (Continental number A3657) 1 212.78
10 12 70521-00 CLAMP – cabin heat control cable 1 NM!
10 13 U80032-034 CLAMP – carburetor heat control cable 1 25.91
10 14 -70801-000 CLAMP – engine mount throttle control 1 74.4
10 15 U70591-002 CLAMP – muffler stack connecting 2 34.61
10 16 U80002-022 CLAMP – tailpipe brace 1 40.39
10 17 -72941-000 CLAMP – engine breather line 1 42
10 18 454-881 CLAMP – breather line hose 2 NM!
10 19 U80222-003 CLAMP – fuel strainer attachment 1 19.34
10 20 AA55487-2 CLIP – cowling 12 0.58
10 21 200X6 CONNECTOR – male 1 2.76
10 22 200X2 CONNECTOR – inverted male 1 2.11
10 23 U73951-000 COVER ASSEMBLY – engine cowl air intake 1 40.98
10 24 U72543-000 COWL ASSEMBLY – engine top 1 871.58
10 25 72473-00 COWL ASSEMBLY – engine bottom 1 NM!
NOTE: Above bottom cowl used to serial number 10338. 1
10 25 U74613-000 COWL ASSEMBLY – engine bottom 1 1294.33
NOTE: Above bottom cowl used from serial number 10339 up. 1
10 26 352X6 ELBOW – inverted 45° 2 7.83

10 27 3400X4 ELBOW – street 2 7.4
10 28 72911-00 ELBOW – carburetor heat take-off 1 NM!
10 29 74311-00 HOSE – engine breather line – flexible 1 NM!
10 30 U31197-000 JET – primer (straight type) 1 59.87
10 31 U70322-002 LINE – flexible fuel 15” 1 183.92
10 32 U72432-000 LINE – fuel tank to strainer – ⁄8” x 11 ⁄8” – copper 1 138.28
3
5
10 33 82332-10 LINE – oil pressure – ¼” x 42” 1 NM!
NOTE: Above oil pressure line used up to ship serial number 8277, 1
inclusive.
10 33 82332-14 LINE – oil pressure – ¼” x 27½” 1 NM!
NOTE: Above oil pressure line used on ship serial number 8278 and 1
up.
1
10 34 U71061-000 LINE – oil pressure flexible – ⁄8” x 5¼” 1 143.43
1
10 35 -71242-006 LINE – primer inlet – ⁄8” x 34½” 1 68.58
10 36 -71242-007 LINE – primer outlet – ⁄8” x 48” 1 43.7
1
10 37 U71163-000 MOUNT – engine 1 1197.11
10 38 70893-03 MUFFLER ASSEMBLY – COMPLETE 1 NM!
10 39 U72691-000 CLAMP – tailpipe 1 35.86
10 40 U71053-002 MUFFLER ASSEMBLY 1 966.01
10 41 74071-00 PLACARD – tailpipe shroud 1 NM!
