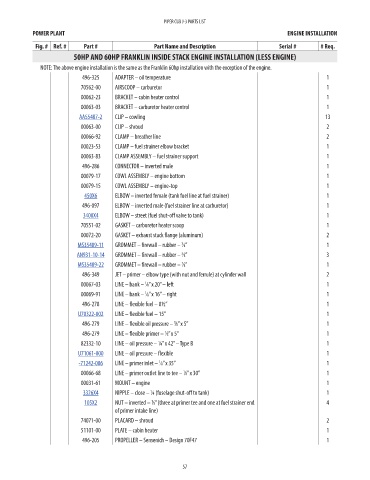

Page 58 - Piper Cub J-3 Interactive Parts Catalog

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
50HP AND 60HP FRANKLIN INSIDE STACK ENGINE INSTALLATION (LESS ENGINE)
NOTE: The above engine installation is the same as the Franklin 60hp installation with the exception of the engine.
496-325 ADAPTER – oil temperature 1 NM!
70562-00 AIRSCOOP – carburetor 1 NM!
00062-23 BRACKET – cabin heater control 1 NM!
00063-03 BRACKET – carburetor heater control 1 NM!
AA55487-2 CLIP – cowling 13 0.58
00063-00 CLIP – shroud 2 NM!
00066-92 CLAMP – breather line 2 NM!
00023-53 CLAMP – fuel strainer elbow bracket 1 NM!
00063-83 CLAMP ASSEMBLY – fuel strainer support 1 NM!
496-286 CONNECTOR – inverted male 1 NM!

00079-17 COWL ASSEMBLY – engine bottom 1 NM!
00079-15 COWL ASSEMBLY – engine-top 1 NM!
450X6 ELBOW – inverted female (tank fuel line at fuel strainer) 1 6.85
496-097 ELBOW – inverted male (fuel strainer line at carburetor) 1 NM!
3400X4 ELBOW – street (fuel shut-off valve to tank) 1 7.4
70551-02 GASKET – carburetor heater scoop 1 NM!
00072-20 GASKET – exhaust stack flange (aluminum) 2 NM!
MS35489-11 GROMMET – firewall – rubber – ⁄8” 1 0.6
3
AN931-10-14 GROMMET – firewall – rubber – ⁄8” 3 2
5
7
MS35489-22 GROMMET – firewall – rubber – ⁄8” 1 2.34
496-349 JET – primer – elbow type (with nut and ferrule) at cylinder wall 2 NM!
00067-03 LINE – bank – ⁄8” x 20” – left 1 NM!
1
00069-91 LINE – bank – ⁄8” x 16” – right 1 NM!
1
496-278 LINE – flexible fuel – 8½” 1 NM!
U70322-002 LINE – flexible fuel – 15” 1 183.92
496-279 LINE – flexible oil pressure – ⁄8” x 5” 1 NM!
1
1
496-279 LINE – flexible primer – ⁄8” x 5” 1 NM!
82332-10 LINE – oil pressure – ¼” x 42” – Type B 1 NM!
U71061-000 LINE – oil pressure – flexible 1 143.43
-71242-006 LINE – primer inlet – ⁄8” x 35” 1 68.58
1
00066-68 LINE – primer outlet line to tee – ⁄8” x 30” 1 NM!
1
00031-61 MOUNT – engine 1 NM!
3326X4 NIPPLE – close – ¼ (fuselage shut-off to tank) 1 0.97
105X2 NUT – inverted – ⁄8” (three at primer tee and one at fuel strainer end 4 2.92
1
of primer intake line)
74071-00 PLACARD – shroud 2 NM!
51101-00 PLATE – cabin heater 1 NM!
496-205 PROPELLER – Sensenich – Design 70F47 1 NM!

57
