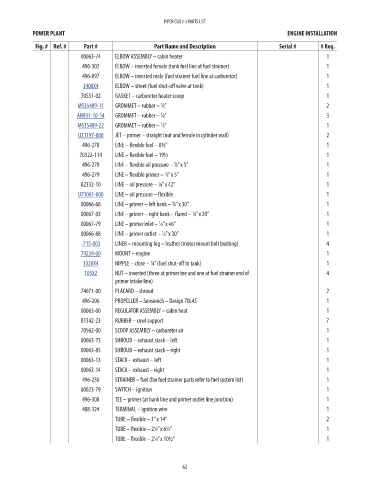

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
00063-74 ELBOW ASSEMBLY – cabin heater 1 NM!
496-302 ELBOW – inverted female (tank fuel line at fuel strainer) 1 NM!
496-097 ELBOW – inverted male (fuel strainer fuel line at carburetor) 1 NM!
3400X4 ELBOW – street (fuel shut-off valve at tank) 1 7.4
70551-02 GASKET – carburetor heater scoop 1 NM!
3
MS35489-11 GROMMET – rubber – ⁄8” 2 0.6
5
AN931-10-14 GROMMET – rubber – ⁄8” 3 2
MS35489-22 GROMMET – rubber – ⁄8” 1 2.34
7
U31197-000 JET – primer – straight (nut and ferrule in cylinder wall) 2 59.87
496-278 LINE – flexible fuel – 8½” 1 NM!
70322-114 LINE – flexible fuel – 19½ 1 NM!
496-279 LINE – flexible oil pressure – ⁄8” x 5” 1 NM!
1
496-279 LINE – flexible primer – ⁄8” x 5” 1 NM!
1
82332-10 LINE – oil pressure – ¼” x 42” 1 NM!
U71061-000 LINE – oil pressure – flexible 1 143.43
00066-68 LINE – primer – left bank – ⁄8” x 30” 1 NM!
1
00067-03 LINE – primer – right bank – flared – ⁄8” x 20” 1 NM!
1
1
00067-79 LINE – primer inlet – ⁄8” x 46” 1 NM!
00066-68 LINE – primer outlet – ⁄8” x 30” 1 NM!
1
-715-003 LINER – mounting lug – leather (motor mount bolt bushing) 4 3.46
74234-00 MOUNT – engine 1 NM!

3326X4 NIPPLE – close – ¼” (fuel shut-off to tank) 1 0.97
105X2 NUT – inverted (three at primer tee and one at fuel strainer end of 4 2.92
primer intake line)
74071-00 PLACARD – shroud 2 NM!
496-206 PROPELLER – Sensenich – Design 70L45 1 NM!
00063-00 REGULATOR ASSEMBLY – cabin heat 1 NM!
81342-23 RUBBER – cowl support 7 NM!
70562-00 SCOOP ASSEMBLY – carburetor air 1 NM!
00063-73 SHROUD – exhaust stack – left 1 NM!
00063-85 SHROUD – exhaust stack – right 1 NM!
00063-13 STACK – exhaust – left 1 NM!
00063-14 STACK – exhaust – right 1 NM!

496-250 STRAINER – fuel (fox fuel strainer parts refer to fuel system list) 1 NM!
00023-79 SWITCH – ignition 1 NM!
496-308 TEE – primer (at bank line and primer outlet line junction) 1 NM!
488-324 TERMINAL – ignition wire 1 NM!
TUBE – flexible – 1” x 14” 2
TUBE – flexible – 2 ⁄8” x 6½” 1
1
TUBE – flexible – 2 ⁄8” x 10½” 1
1

62
