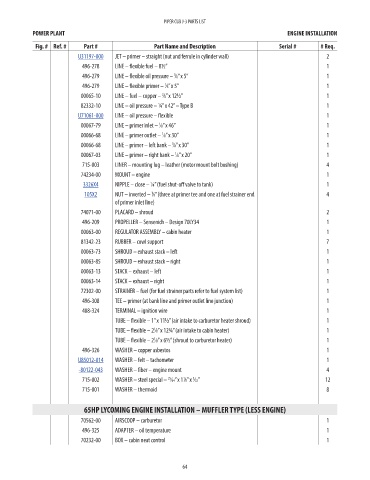

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
U31197-000 JET – primer – straight (nut and ferrule in cylinder wall) 2 59.87
496-278 LINE – flexible fuel – 8½” 1 NM!
496-279 LINE – flexible oil pressure – ⁄8” x 5” 1 NM!
1
496-279 LINE – flexible primer – ⁄8” x 5” 1 NM!
1
00065-10 LINE – fuel – copper – ⁄8” x 12½” 1 NM!
3
82332-10 LINE – oil pressure – ¼” x 42” – Type B 1 NM!
U71061-000 LINE – oil pressure – flexible 1 143.43
00067-79 LINE – primer inlet – ⁄8” x 46” 1 NM!
1
00066-68 LINE – primer outlet – ⁄8” x 30” 1 NM!
1
1
00066-68 LINE – primer – left bank – ⁄8” x 30” 1 NM!
00067-03 LINE – primer – right bank – ⁄8” x 20” 1 NM!
1
715-003 LINER – mounting lug – leather (motor mount bolt bushing) 4 NM!
74234-00 MOUNT – engine 1 NM!
3326X4 NIPPLE – close – ¼” (fuel shut-off valve to tank) 1 0.97
1
105X2 NUT – inverted – ⁄8” (three at primer tee and one at fuel strainer end 4 2.92
of primer inlet line)
74071-00 PLACARD – shroud 2 NM!
496-209 PROPELLER – Sensenich – Design 70LY34 1 NM!
00063-00 REGULATOR ASSEMBLY – cabin heater 1 NM!
81342-23 RUBBER – cowl support 7 NM!
00063-73 SHROUD – exhaust stack – left 1 NM!
00063-85 SHROUD – exhaust stack – right 1 NM!
00063-13 STACK – exhaust – left 1 NM!
00063-14 STACK – exhaust – right 1 NM!
72302-00 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
496-308 TEE – primer (at bank line and primer outlet line junction) 1 NM!
488-324 TERMINAL – ignition wire 1 NM!
TUBE – flexible – 1” x 11½” (air intake to carburetor heater shroud) 1
TUBE – flexible – 2 ⁄8” x 12¾” (air intake to cabin heater) 1
1
1
TUBE – flexible – 2 ⁄8” x 6½” (shroud to carburetor heater) 1
496-326 WASHER – copper asbestos 1 NM!
U85012-014 WASHER – felt – tachometer 1 4.67
-80122-043 WASHER – fiber – engine mount 4 4.51

3
25
1
715-002 WASHER – steel special – ⁄64” x 1 ⁄8” x ⁄32” 12 NM!
715-001 WASHER – thermoid 8 NM!
65HP LYCOMING ENGINE INSTALLATION – MUFFLER TYPE (LESS ENGINE)
70562-00 AIRSCOOP – carburetor 1 NM!
496-325 ADAPTER – oil temperature 1 NM!
70232-00 BOX – cabin neat control 1 NM!

64
