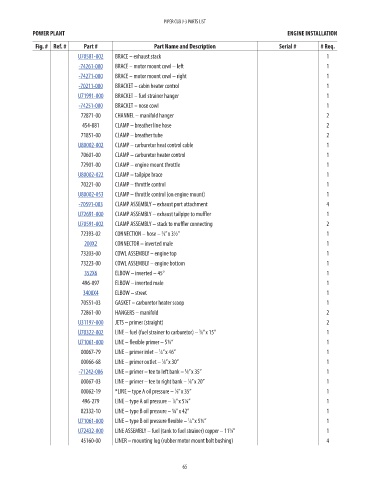

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
U70581-002 BRACE – exhaust stack 1 63.57
-74261-000 BRACE – motor mount cowl – left 1 26.56
-74271-000 BRACE – motor mount cowl – right 1 26.27
-70211-000 BRACKET – cabin heater control 1 10.01
U71991-000 BRACKET – fuel strainer hanger 1 77.83
-74251-000 BRACKET – nose cowl 1 20.61
72871-00 CHANNEL – manifold hanger 2 NM!
454-881 CLAMP – breather line hose 2 NM!
71851-00 CLAMP – breather tube 2 NM!
U80002-002 CLAMP – carburetor heat control cable 1 34.32
70601-00 CLAMP – carburetor heater control 1 NM!
72901-00 CLAMP – engine mount throttle 1 NM!
U80002-022 CLAMP – tailpipe brace 1 40.39
70221-00 CLAMP – throttle control 1 NM!
U80002-053 CLAMP – throttle control (on engine mount) 1 27.18
-70591-003 CLAMP ASSEMBLY – exhaust port attachment 4 35.53
U72691-000 CLAMP ASSEMBLY – exhaust tailpipe to muffler 1 35.86
U70591-002 CLAMP ASSEMBLY – stack to muffler connecting 2 34.61
72393-02 CONNECTION – hose – ⁄8” x 3½” 1 NM!
5
200X2 CONNECTOR – inverted male 1 2.11
73203-00 COWL ASSEMBLY – engine top 1 NM!

73223-00 COWL ASSEMBLY – engine bottom 1 NM!
352X6 ELBOW – inverted – 45° 1 7.83
496-097 ELBOW – inverted male 1 NM!
3400X4 ELBOW – street 1 7.4
70551-03 GASKET – carburetor heater scoop 1 NM!
72861-00 HANGERS – manifold 2 NM!
U31197-000 JETS – primer (straight) 2 59.87
U70322-002 LINE – fuel (fuel strainer to carburetor) – ⁄8” x 15” 1 183.92
3
U71061-000 LINE – flexible primer – 5¼” 1 143.43
00067-79 LINE – primer inlet – ⁄8” x 46” 1 NM!
1
00066-68 LINE – primer outlet – ⁄8” x 30” 1 NM!
1
-71242-006 LINE – primer – tee to left bank – ⁄8” x 35” 1 68.58
1
1
00067-03 LINE – primer – tee to right bank – ⁄8” x 20” 1 NM!
00062-19 *LINE – type A oil pressure – ⁄8” x 35” 1 NM!
1
496-279 LINE – type A oil pressure – ⁄8” x 5¼” 1 NM!
1
82332-10 LINE – type B oil pressure – ¼” x 42” 1 NM!
U71061-000 LINE – type B oil pressure flexible – ⁄8” x 5¼” 1 143.43
1
U72432-000 LINE ASSEMBLY – fuel (tank to fuel strainer) copper – 11 ⁄8” 1 138.28
5
45160-00 LINER – mounting lug (rubber motor mount bolt bushing) 4 NM!

65
