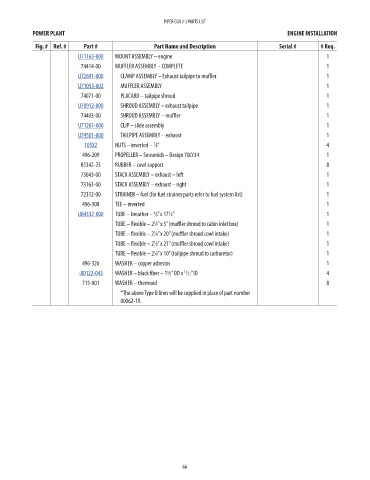

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
U71163-000 MOUNT ASSEMBLY – engine 1 1197.11
74414-00 MUFFLER ASSEMBLY – COMPLETE 1 NM!
U72691-000 CLAMP ASSEMBLY – Exhaust tailpipe to muffler 1 35.86
U71053-002 MUFFLER ASSEMBLY 1 966.01
74071-00 PLACARD – tailpipe shroud 1 NM!
U70912-000 SHROUD ASSEMBLY – exhaust tailpipe 1 265.31
74403-00 SHROUD ASSEMBLY – muffler 1 NM!
U71261-000 CLIP – slide assembly 1 66.2
U74501-000 TAILPIPE ASSEMBLY – exhaust 1 358.65
105X2 NUTS – inverted – ⁄8” 4 2.92
1
496-209 PROPELLER – Sensenich – Design 70LY34 1 NM!
81342-23 RUBBER – cowl support 8 NM!
73043-00 STACK ASSEMBLY – exhaust – left 1 NM!
73163-00 STACK ASSEMBLY – exhaust – right 1 NM!
72312-00 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
496-308 TEE – inverted 1 NM!
U84332-000 TUBE – breather – ⁄8” x 17½” 1 99.11
5
TUBE – flexible – 2 ⁄8” x 5” (muffler shroud to cabin inlet box) 1
1
1
TUBE – flexible – 2 ⁄8” x 20” (muffler shroud cowl intake) 1
TUBE – flexible – 2 ⁄8” x 21” (muffler shroud cowl intake) 1
1
TUBE – flexible – 2 ⁄8” x 10” (tailpipe shroud to carburetor) 1
1
496-326 WASHER – copper asbestos 1 NM!
13
-80122-043 WASHER – black fiber – 1½” OD x ⁄32” ID 4 4.51
715-001 WASHER – thermoid 8 NM!
*The above Type B lines will be supplied in place of part number
00062-19.

66
