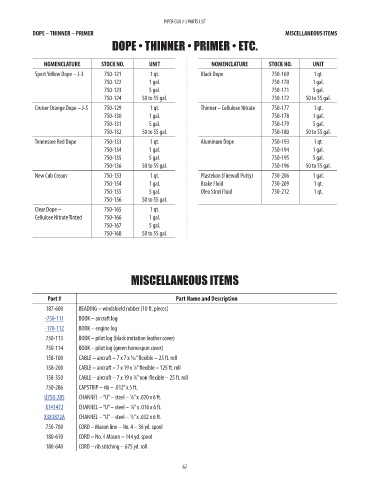

PIPER CUB J-3 PARTS LIST
DOPE – THINNER – PRIMER MISCELLANEOUS ITEMS
DOPE • THINNER • PRIMER • ETC.

NOMENCLATURE STOCK NO. UNIT NOMENCLATURE STOCK NO. UNIT
Sport Yellow Dope – J-3 750-121 1 qt. Black Dope 750-169 1 qt.
750-122 1 gal. 750-170 1 gal.
750-123 5 gal. 750-171 5 gal.
750-124 50 to 55 gal. 750-172 50 to 55 gal.
Cruiser Orange Dope – J-5 750-129 1 qt. Thinner – Cellulose Nitrate 750-177 1 qt.
750-130 1 gal. 750-178 1 gal.
750-131 5 gal. 750-179 5 gal.
750-132 50 to 55 gal. 750-180 50 to 55 gal.
Tennessee Red Dope 750-133 1 qt. Aluminum Dope 750-193 1 qt.
750-134 1 gal. 750-194 1 gal.
750-135 5 gal. 750-195 5 gal.
750-136 50 to 55 gal. 750-196 50 to 55 gal.
New Cub Cream 750-153 1 qt. Plastekon (Firewall Putty) 750-206 1 gal.
750-154 1 gal. Brake Fluid 750-209 1 qt.
750-155 5 gal. Oleo Strut Fluid 750-212 1 qt.
750-156 50 to 55 gal.
Clear Dope – 750-165 1 qt.
Cellulose Nitrate Tinted 750-166 1 gal.
750-167 5 gal.
750-168 50 to 55 gal.

MISCELLANEOUS ITEMS

Part # Part Name and Description Price
187-600 BEADING – windshield rubber (10 ft. pieces) NM!
-750-111 BOOK – aircraft log 25.25
-170-112 BOOK – engine log 33.54
750-113 BOOK – pilot log (black imitation leather cover) NM!
750-114 BOOK – pilot log (green homespun cover) NM!
158-100 CABLE – aircraft – 7 x 7 x ⁄16” flexible – 25 ft. roll NM!
1
1
158-200 CABLE – aircraft – 7 x 19 x ⁄8” flexible – 125 ft. roll NM!
158-350 CABLE – aircraft – 7 x 19 x ⁄8” non-flexible – 25 ft. roll NM!
1
750-286 CAPSTRIP – rib – .012” x 5 ft. NM!
3
U750-285 CHANNEL – “U” – steel – ⁄8” x .020 x 6 ft. 11.67
X141472 CHANNEL – “U” – steel – ¼” x .016 x 6 ft. 8.26
X383872A CHANNEL – “U” – steel – ⁄8” x .032 x 6 ft. 18.43
3
750-700 CORD – Mason line – No. 4 – 36 yd. spool NM!
180-610 CORD – No. 4 Mason – 144 yd. spool NM!
180-640 CORD – rib stitching – 675 yd. roll NM!

67
