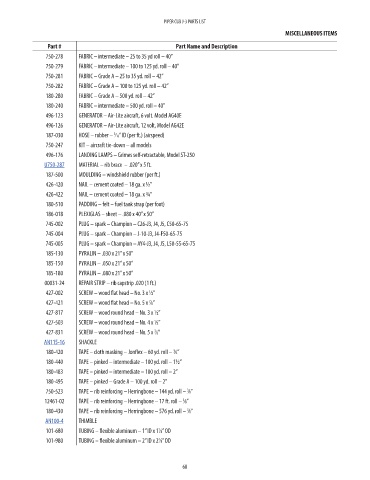

PIPER CUB J-3 PARTS LIST
MISCELLANEOUS ITEMS

Part # Part Name and Description Price
750-278 FABRIC – intermediate – 25 to 35 yd roll – 40” NM!
750-279 FABRIC – intermediate – 100 to 125 yd. roll – 40” NM!
750-281 FABRIC – Grade A – 25 to 35 yd. roll – 42” NM!
750-282 FABRIC – Grade A – 100 to 125 yd. roll – 42” NM!
180-280 FABRIC – Grade A – 500 yd. roll – 42” NM!
180-240 FABRIC – intermediate – 500 yd. roll – 40” NM!
496-123 GENERATOR – Air-Lite aircraft, 6 volt. Model AG40E NM!
496-126 GENERATOR – Air-Lite aircraft, 12 volt, Model AG42E NM!
187-030 HOSE – rubber – ⁄16” ID (per ft.) (airspeed) NM!
3
750-247 KIT – aircraft tie-down – all models NM!
496-176 LANDING LAMPS – Grimes self-retractable, Model ST-250 NM!
U750-287 MATERIAL – rib brace – .020” x 5 ft. 14.5
187-500 MOULDING – windshield rubber (per ft.) NM!
426-420 NAIL – cement coated – 18 ga. x ½” NM!
426-422 NAIL – cement coated – 18 ga. x ¾” NM!
180-510 PADDING – felt – fuel tank strap (per foot) NM!
186-018 PLEXIGLAS – sheet – .080 x 40” x 50” NM!
745-002 PLUG – spark – Champion – C26-J3, J4, J5, C50-65-75 NM!
745-004 PLUG – spark – Champion – J-10-J3, J4-F50-65-75 NM!
745-005 PLUG – spark – Champion – AY4-J3, J4, J5, L50-55-65-75 NM!
185-130 PYRALIN – .030 x 21” x 50” NM!

185-150 PYRALIN – .050 x 21” x 50” NM!
185-180 PYRALIN – .080 x 21” x 50” NM!
00031-24 REPAIR STRIP – rib capstrip .020 (1 ft.) NM!
427-002 SCREW – wood flat head – No. 3 x ½” NM!
7
427-421 SCREW – wood flat head – No. 5 x ⁄8” NM!
427-817 SCREW – wood round head – No. 3 x ½” NM!
427-503 SCREW – wood round head – No. 4 x ½” NM!
427-831 SCREW – wood round head – No. 5 x ⁄8” NM!
3
AN115-16 SHACKLE 22.5
180-420 TAPE – cloth masking – Jonflex – 60 yd. roll – ¾” NM!
180-440 TAPE – pinked – intermediate – 100 yd. roll – 1½” NM!
180-483 TAPE – pinked – intermediate – 100 yd. roll – 2” NM!
180-495 TAPE – pinked – Grade A – 100 yd. roll – 2” NM!
750-523 TAPE – rib reinforcing – Herringbone – 144 yd. roll – ⁄8” NM!
3
12461-02 TAPE – rib reinforcing – Herringbone – 17 ft. roll – ⁄8” NM!
3
180-430 TAPE – rib reinforcing – Herringbone – 576 yd. roll – ⁄8” NM!
3
AN100-4 THIMBLE 0.34
101-680 TUBING – flexible aluminum – 1” ID x 1 ⁄8” OD NM!
1
101-980 TUBING – flexible aluminum – 2” ID x 2 ⁄8” OD NM!
1

68
