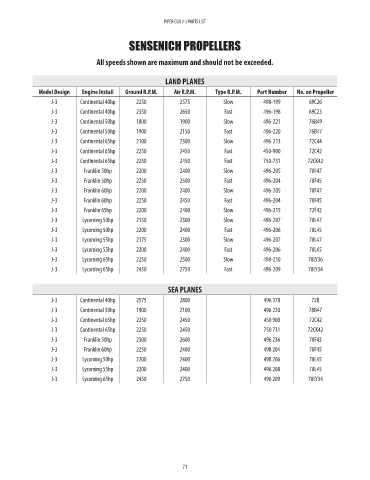

PIPER CUB J-3 PARTS LIST

SENSENICH PROPELLERS

All speeds shown are maximum and should not be exceeded.

LAND PLANES
Model Design Engine Install Ground R.P.M. Air R.P.M. Type R.P.M. Part Number No. on Propeller
J-3 Continental 40hp 2250 2575 Slow 498-199 69C26
J-3 Continental 40hp 2350 2650 Fast 496-198 69C23
J-3 Continental 50hp 1800 1900 Slow 496-221 76B49
J-3 Continental 50hp 1900 2150 Fast 496-220 76B47
J-3 Continental 65hp 2100 2300 Slow 496-213 72C44
J-3 Continental 65hp 2250 2450 Fast 450-900 72C42
J-3 Continental 65hp 2250 2450 Fast 750-731 72CK42
J-3 Franklin 50hp 2200 2400 Slow 496-205 70F47
J-3 Franklin 50hp 2250 2500 Fast 496-204 70F45
J-3 Franklin 60hp 2200 2400 Slow 496-205 70F47
J-3 Franklin 60hp 2250 2450 Fast 496-204 70F45
J-3 Franklin 65hp 2200 2400 Slow 496-215 72F42
J-3 Lycoming 50hp 2150 2300 Slow 496-207 70L47
J-3 Lycoming 50hp 2200 2400 Fast 496-206 70L45

J-3 Lycoming 55hp 2175 2300 Slow 496-207 70L47
J-3 Lycoming 55hp 2200 2400 Fast 496-206 70L45
J-3 Lycoming 65hp 2250 2500 Slow 498-210 70LY36
J-3 Lycoming 65hp 2450 2750 Fast 496-209 70LY34

SEA PLANES
J-3 Continental 40hp 2575 2800 496 378 72B
J-3 Continental 50hp 1900 2100 496 220 78B47
J-3 Continental 65hp 2250 2450 450 900 72C42
J-3 Continental 65hp 2250 2450 750 731 72CK42
J-3 Franklin 50hp 2300 2600 496 236 70F43
J-3 Franklin 60hp 2250 2400 498 204 70F45
J-3 Lycoming 50hp 2200 2400 498 206 70L45
J-3 Lycoming 55hp 2200 2400 496 208 70L45
J-3 Lycoming 65hp 2450 2750 496 209 70LY34

71
