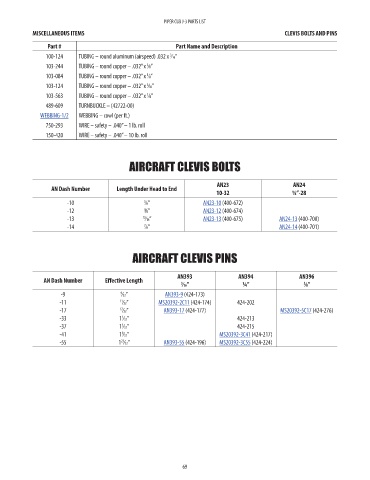

PIPER CUB J-3 PARTS LIST
MISCELLANEOUS ITEMS CLEVIS BOLTS AND PINS

Part # Part Name and Description Price
100-124 TUBING – round aluminum (airspeed) .032 x ⁄16” NM!
3
103-244 TUBING – round copper – .032” x ⁄8” NM!
3
1
103-084 TUBING – round copper – .032” x ⁄8” NM!
103-124 TUBING – round copper – .032” x ⁄16” NM!
3
103-563 TUBING – round copper – .032” x ¼” NM!
489-609 TURNBUCKLE – (42722-00) NM!
WEBBING-1/2 WEBBING – cowl (per ft.) 0.8
750-293 WIRE – safety – .040” – 1 lb. roll NM!
150-420 WIRE – safety – .040” – 10 lb. roll NM!

AIRCRAFT CLEVIS BOLTS

AN23 AN24
AN Dash Number Length Under Head to End
10-32 ¼”-28
-10 5 ⁄8” AN23-10 (400-672)
-12 ¾” AN23-12 (400-674)
-13 13 ⁄16” AN23-13 (400-675) AN24-13 (400-700)
-14 7 ⁄8” AN24-14 (400-701)

AIRCRAFT CLEVIS PINS

AN393 AN394 AN396
AN Dash Number Effective Length 3 ⁄16” ¼” 3 ⁄8”

-9 9 ⁄32” AN393-9 (424-173)
-11 11 ⁄32” MS20392-2C11 (424-174) 424-202
-17 17 ⁄32” AN393-17 (424-177) MS20392-5C17 (424-276)
-33 1 ⁄32” 424-213
1
-37 1 ⁄32” 424-215
5
-41 1 ⁄32” MS20392-3C41 (424-217)
9
-55 1 ⁄32” AN393-55 (424-196) MS20392-3C55 (424-224)
23

69
