Page 60 - Piper Cub J-3 Interactive Parts Catalog
P. 60

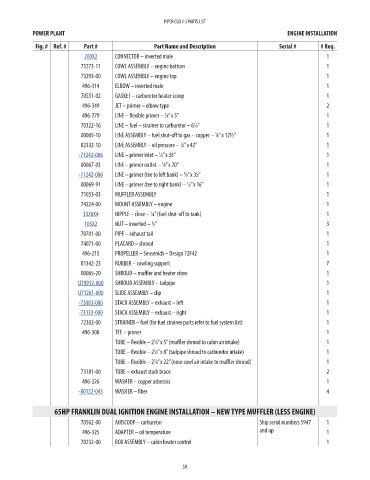

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION
Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
200X2 CONNECTOR – inverted male 1 2.11
73273-11 COWL ASSEMBLY – engine bottom 1 NM!
73293-00 COWL ASSEMBLY – engine top 1 NM!
496-314 ELBOW – inverted male 1 NM!
70551-02 GASKET – carburetor heater scoop 1 NM!
496-349 JET – primer – elbow type 2 NM!
1
496-279 LINE – flexible primer – ⁄8” x 5” 1 NM!
70322-16 LINE – fuel – strainer to carburetor – 6 ⁄8” 1 NM!
7
00065-10 LINE ASSEMBLY – fuel shut-off to gas – copper – ⁄8” x 12½” 1 NM!
3
82332-10 LINE ASSEMBLY – oil pressure – ⁄8” x 42” 1 NM!
1
1
-71242-006 LINE – primer inlet – ⁄8” x 35” 1 68.58
00067-03 LINE – primer outlet – ⁄8” x 20” 1 NM!
1
-71242-006 LINE – primer (tee to left bank) – ⁄8” x 35” 1 68.58
1
00069-91 LINE – primer (tee to right bank) – ⁄8” x 16” 1 NM!
1
71053-03 MUFFLER ASSEMBLY 1 NM!
74224-00 MOUNT ASSEMBLY – engine 1 NM!
3326X4 NIPPLE – close – ¼” (fuel shut-off to tank) 1 0.97
1
105X2 NUT – inverted – ⁄8” 3 2.92
70701-00 PIPE – exhaust tail 1 NM!
74071-00 PLACARD – shroud 1 NM!
496-215 PROPELLER – Sensenich – Design 72F42 1 NM!
81342-23 RUBBER – cowling support 7 NM!
00065-20 SHROUD – muffler and heater stove 1 NM!
U70912-000 SHROUD ASSEMBLY – tailpipe 1 265.31
U71261-000 SLIDE ASSEMBLY – clip 1 66.2
-73083-000 STACK ASSEMBLY – exhaust – left 1 615.01
-73133-000 STACK ASSEMBLY – exhaust – right 1 539.35
72302-00 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
496-308 TEE – primer 1 NM!
1
TUBE – flexible – 2 ⁄8” x 5” (muffler shroud to cabin air intake) 1
TUBE – flexible – 2 ⁄8” x 8” (tailpipe shroud to carburetor intake) 1
1
TUBE – flexible – 2 ⁄8” x 22” (nose cowl air intake to muffler shroud) 1
1
73181-00 TUBE – exhaust stack brace 2 NM!
496-326 WASHER – copper asbestos 1 NM!
-80122-043 WASHER – fiber 4 4.51
65HP FRANKLIN DUAL IGNITION ENGINE INSTALLATION – NEW TYPE MUFFLER (LESS ENGINE)
70562-00 AIRSCOOP – carburetor Ship serial numbers 5947 1 NM!
496-325 ADAPTER – oil temperature and up 1 NM!
70232-00 BOX ASSEMBLY – cabin heater control 1 NM!
59
