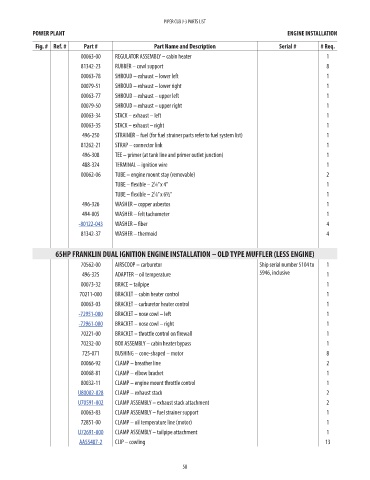

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
00063-00 REGULATOR ASSEMBLY – cabin heater 1 NM!
81342-23 RUBBER – cowl support 8 NM!
00063-78 SHROUD – exhaust – lower left 1 NM!
00079-51 SHROUD – exhaust – lower right 1 NM!
00063-77 SHROUD – exhaust – upper left 1 NM!
00079-50 SHROUD – exhaust – upper right 1 NM!
00063-34 STACK – exhaust – left 1 NM!
00063-35 STACK – exhaust – right 1 NM!
496-250 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
81262-21 STRAP – connector link 1 NM!
496-308 TEE – primer (at tank line and primer outlet junction) 1 NM!
488-324 TERMINAL – ignition wire 1 NM!
00062-06 TUBE – engine mount stay (removable) 2 NM!
TUBE – flexible – 2 ⁄8” x 4” 1
1
1
TUBE – flexible – 2 ⁄8” x 6½” 1
496-326 WASHER – copper asbestos 1 NM!
494-005 WASHER – felt tachometer 1 NM!
-80122-043 WASHER – fiber 4 4.51
81342-37 WASHER – thermoid 4 NM!

65HP FRANKLIN DUAL IGNITION ENGINE INSTALLATION – OLD TYPE MUFFLER (LESS ENGINE)

70562-00 AIRSCOOP – carburetor Ship serial number 5104 to 1 NM!
496-325 ADAPTER – oil temperature 5946, inclusive 1 NM!
00073-32 BRACE – tailpipe 1 NM!
70211-000 BRACKET – cabin heater control 1 NM!
00063-03 BRACKET – carburetor heater control 1 NM!
-72951-000 BRACKET – nose cowl – left 1 22.47
-72961-000 BRACKET – nose cowl – right 1 25.55
70221-00 BRACKET – throttle control on firewall 1 NM!
70232-00 BOX ASSEMBLY – cabin heater bypass 1 NM!
725-071 BUSHING – cone-shaped – motor 8 NM!
00066-92 CLAMP – breather line 2 NM!
00068-81 CLAMP – elbow bracket 1 NM!
80032-11 CLAMP – engine mount throttle control 1 NM!
U80002-028 CLAMP – exhaust stack 2 25.91
U70591-002 CLAMP ASSEMBLY – exhaust stack attachment 2 34.61
00063-83 CLAMP ASSEMBLY – fuel strainer support 1 NM!
72851-00 CLAMP – oil temperature line (motor) 1 NM!
U72691-000 CLAMP ASSEMBLY – tailpipe attachment 1 35.86
AA55487-2 CLIP – cowling 13 0.58

58
