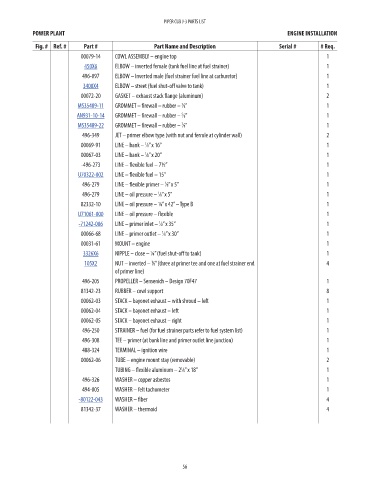

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
00079-14 COWL ASSEMBLY – engine top 1 NM!
450X6 ELBOW – inverted female (tank fuel line at fuel strainer) 1 6.85
496-097 ELBOW – Inverted male (fuel strainer fuel line at carburetor) 1 NM!
3400X4 ELBOW – street (fuel shut-off valve to tank) 1 7.4
00072-20 GASKET – exhaust stack flange (aluminum) 2 NM!
MS35489-11 GROMMET – firewall – rubber – ⁄8” 1 0.6
3
AN931-10-14 GROMMET – firewall – rubber – ⁄8” 1 2
5
MS35489-22 GROMMET – firewall – rubber – ⁄8” 1 2.34
7
496-349 JET – primer elbow type (with nut and ferrule at cylinder wall) 2 NM!
1
00069-91 LINE – bank – ⁄8” x 16” 1 NM!
00067-03 LINE – bank – ⁄8” x 20” 1 NM!
1
-496-273 LINE – flexible fuel – 7½” 1 NM!
U70322-002 LINE – flexible fuel – 15” 1 183.92
1
496-279 LINE – flexible primer – ⁄8” x 5” 1 NM!
1
496-279 LINE – oil pressure – ⁄8” x 5” 1 NM!
82332-10 LINE – oil pressure – ¼” x 42” – Type B 1 NM!
U71061-000 LINE – oil pressure – flexible 1 143.43
1
-71242-006 LINE – primer inlet – ⁄8” x 35” 1 68.58
1
00066-68 LINE – primer outlet – ⁄8” x 30” 1 NM!
00031-61 MOUNT – engine 1 NM!
3326X6 NIPPLE – close – ¼” (fuel shut-off to tank) 1 4.87

105X2 NUT – inverted – ⁄8” (three at primer tee and one at fuel strainer end 4 2.92
1
of primer line)
496-205 PROPELLER – Sensenich – Design 70F47 1 NM!
81342-23 RUBBER – cowl support 8 NM!
00062-03 STACK – bayonet exhaust – with shroud – left 1 NM!
00062-04 STACK – bayonet exhaust – left 1 NM!
00062-05 STACK – bayonet exhaust – right 1 NM!
496-250 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
496-308 TEE – primer (at bank line and primer outlet line junction) 1 NM!
488-324 TERMINAL – ignition wire 1 NM!
00062-06 TUBE – engine mount stay (removable) 2 NM!
TUBING – flexible aluminum – 2 ⁄8” x 18” 1
1
496-326 WASHER – copper asbestos 1 NM!
494-005 WASHER – felt tachometer 1 NM!
-80122-043 WASHER – fiber 4 4.51
81342-37 WASHER – thermoid 4 NM!

56
