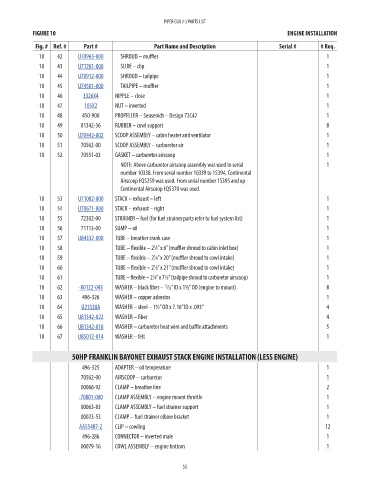

PIPER CUB J-3 PARTS LIST
FIGURE 10 ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
10 42 U70963-000 SHROUD – muffler 1 516.58
10 43 U71261-000 SLIDE – clip 1 66.2
10 44 U70912-000 SHROUD – tailpipe 1 265.31
10 45 U74501-000 TAILPIPE – muffler 1 358.65
10 46 3326X4 NIPPLE – close 1 0.97
10 47 105X2 NUT – inverted 1 2.92
10 48 450-900 PROPELLER – Sensenich – Design 72C42 1 NM!
10 49 81342-36 RUBBER – cowl support 8 NM!
10 50 U70442-002 SCOOP ASSEMBLY – cabin heater and ventilator 1 434.96
10 51 70562-00 SCOOP ASSEMBLY – carburetor air 1 NM!
10 52 70551-03 GASKET – carburetor airscoop 1 NM!
NOTE: Above carburetor airscoop assembly was used to serial 1
number 10338. From serial number 10339 to 15394, Continental
Airscoop EQ5259 was used. From serial number 15395 and up
Continental Airscoop EQ5370 was used.
10 53 U71082-000 STACK – exhaust – left 1 1047.22
10 54 U70671-000 STACK – exhaust – right 1 928.72
10 55 72302-00 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
10 56 71113-00 SUMP – oil 1 NM!
10 57 U84332-000 TUBE – breather crank case 1 99.11
10 58 TUBE – flexible – 2 ⁄8” x 6” (muffler shroud to cabin inlet box) 1
1
10 59 TUBE – flexible – 2 ⁄8” x 20” (muffler shroud to cowl intake) 1
1
10 60 TUBE – flexible – 2 ⁄8” x 21” (muffler shroud to cowl intake) 1
1
10 61 TUBE – flexible – 2 ⁄8” x 7½” (tailpipe shroud to carburetor airscoop) 1
1
10 62 -80122-043 WASHER – black fiber – ⁄32” ID x 1½” OD (engine to mount) 8 4.51
13
10 63 496-326 WASHER – copper asbestos 1 NM!
10 64 U21530A WASHER – steel – 1½” OD x 7.16” ID x .093” 4 7.84
10 65 U81342-022 WASHER – fiber 4 5.79
10 66 U81342-018 WASHER – carburetor heat wire and baffle attachments 5 4.22
10 67 U85012-014 WASHER – felt 1 4.67

50HP FRANKLIN BAYONET EXHAUST STACK ENGINE INSTALLATION (LESS ENGINE)

496-325 ADAPTER – oil temperature 1 NM!
70562-00 AIRSCOOP – carburetor 1 NM!
00066-92 CLAMP – breather line 2 NM!
-70801-000 CLAMP ASSEMBLY – engine mount throttle 1 74.4
00063-83 CLAMP ASSEMBLY – fuel strainer support 1 NM!
00023-53 CLAMP – fuel strainer elbow bracket 1 NM!
AA55487-2 CLIP – cowling 12 0.58
496-286 CONNECTOR – inverted male 1 NM!
00079-16 COWL ASSEMBLY – engine bottom 1 NM!
