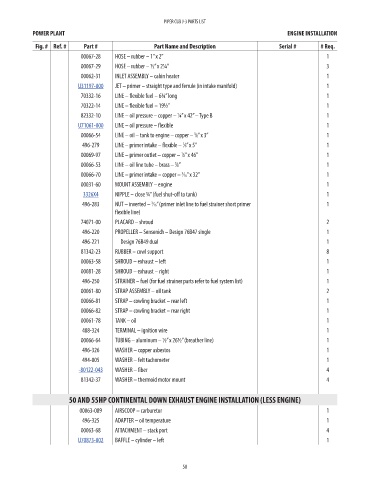

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
00067-28 HOSE – rubber – 1” x 2” 1 NM!
00067-29 HOSE – rubber – ½” x 2¼” 3 NM!
00062-31 INLET ASSEMBLY – cabin heater 1 NM!
U31197-000 JET – primer – straight type and ferrule (in intake manifold) 1 59.87
70332-16 LINE – flexible fuel – 6¾” long 1 NM!
70322-14 LINE – flexible fuel – 19½” 1 NM!
82332-10 LINE – oil pressure – copper – ¼” x 42” – Type B 1 NM!
U71061-000 LINE – oil pressure – flexible 1 143.43
00066-54 LINE – oil – tank to engine – copper – ⁄8” x 3” 1 NM!
3
1
496-279 LINE – primer intake – flexible – ⁄8” x 5” 1 NM!
00069-97 LINE – primer outlet – copper – ⁄8” x 46” 1 NM!
1
00066-53 LINE – oil line tube – brass – ⁄8” 1 NM!
5
00066-70 LINE – primer intake – copper – ⁄16” x 32” 1 NM!
3
00031-60 MOUNT ASSEMBLY – engine 1 NM!
3326X4 NIPPLE – close ¼” (fuel shut-off to tank) 1 0.97
496-283 NUT – inverted – ⁄16” (primer inlet line to fuel strainer short primer 1 NM!
3
flexible line)
74071-00 PLACARD – shroud 2 NM!
496-220 PROPELLER – Sensenich – Design 76B47 single 1 NM!
496-221 Design 76B49 dual 1 NM!
81342-23 RUBBER – cowl support 8 NM!
00063-58 SHROUD – exhaust – left 1 NM!
00081-28 SHROUD – exhaust – right 1 NM!
496-250 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
00061-80 STRAP ASSEMBLY – oil tank 2 NM!
00066-81 STRAP – cowling bracket – rear left 1 NM!
00066-82 STRAP – cowling bracket – rear right 1 NM!
00061-78 TANK – oil 1 NM!
488-324 TERMINAL – ignition wire 1 NM!
00066-64 TUBING – aluminum – ½” x 26½” (breather line) 1 NM!
496-326 WASHER – copper asbestos 1 NM!
494-005 WASHER – felt tachometer 1 NM!
-80122-043 WASHER – fiber 4 4.51

81342-37 WASHER – thermoid motor mount 4 NM!

50 AND 55HP CONTINENTAL DOWN EXHAUST ENGINE INSTALLATION (LESS ENGINE)

00063-089 AIRSCOOP – carburetor 1 NM!
496-325 ADAPTER – oil temperature 1 NM!
00063-68 ATTACHMENT – stack port 4 NM!
U70873-002 BAFFLE – cylinder – left 1 684.68

50
