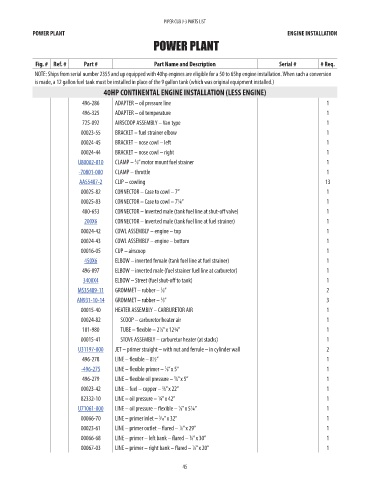

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION
POWER PLANT

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
NOTE: Ships from serial number 2355 and up equipped with 40hp engines are eligible for a 50 to 65hp engine installation. When such a conversion
is made, a 12 gallon fuel tank must be installed in place of the 9 gallon tank (which was original equipment installed.)
40HP CONTINENTAL ENGINE INSTALLATION (LESS ENGINE)
496-286 ADAPTER – oil pressure line 1 NM!
496-325 ADAPTER – oil temperature 1 NM!
725-092 AIRSCOOP ASSEMBLY – Van type 1 NM!
00023-55 BRACKET – fuel strainer elbow 1 NM!
00024-45 BRACKET – nose cowl – left 1 NM!

00024-44 BRACKET – nose cowl – right 1 NM!
5
U80002-010 CLAMP – ⁄8” motor mount fuel strainer 1 12.41
-70801-000 CLAMP – throttle 1 74.4
AA55487-2 CLIP – cowling 13 0.58
00025-82 CONNECTOR – Case to cowl – 7” 1 NM!
00025-83 CONNECTOR – Case to cowl – 7¼” 1 NM!
480-653 CONNECTOR – Inverted male (tank fuel line at shut-off valve) 1 NM!
200X6 CONNECTOR – Inverted male (tank fuel line at fuel strainer) 1 2.76
00024-42 COWL ASSEMBLY – engine – top 1 NM!
00024-43 COWL ASSEMBLY – engine – bottom 1 NM!
00016-05 CUP – airscoop 1 NM!
450X6 ELBOW – inverted female (tank fuel line at fuel strainer) 1 6.85
496-097 ELBOW – inverted male (fuel strainer fuel line at carburetor) 1 NM!
3400X4 ELBOW – Street (fuel shut-off to tank) 1 7.4
MS35489-11 GROMMET – rubber – ⁄8” 2 0.6
3
AN931-10-14 GROMMET – rubber – ⁄8” 3 2
5
00015-40 HEATER ASSEMBLY – CARBURETOR AIR 1 NM!
00024-82 SCOOP – carburetor heater air 1 NM!
101-980 TUBE – flexible – 2 ⁄8” x 12¾” 1 NM!
1
00015-41 STOVE ASSEMBLY – carburetor heater (at stacks) 1 NM!
U31197-000 JET – primer straight – with nut and ferrule – in cylinder wall 2 59.87
496-278 LINE – flexible – 8½” 1 NM!
-496-275 LINE – flexible primer – ⁄8” x 5” 1 9.76
1
496-279 LINE – flexible oil pressure – ⁄8” x 5” 1 NM!
1
3
00023-42 LINE – fuel – copper – ⁄8” x 22” 1 NM!
82332-10 LINE – oil pressure – ¼” x 42” 1 NM!
U71061-000 LINE – oil pressure – flexible – ⁄8” x 5¼” 1 143.43
1
00066-70 LINE – primer inlet – ⁄16” x 32” 1 NM!
3
00023-61 LINE – primer outlet – flared – ⁄8” x 29” 1 NM!
1
00066-68 LINE – primer – left bank – flared – ⁄8” x 30” 1 NM!
1
00067-03 LINE – primer – right bank – flared – ⁄8” x 20” 1 NM!
1

45
