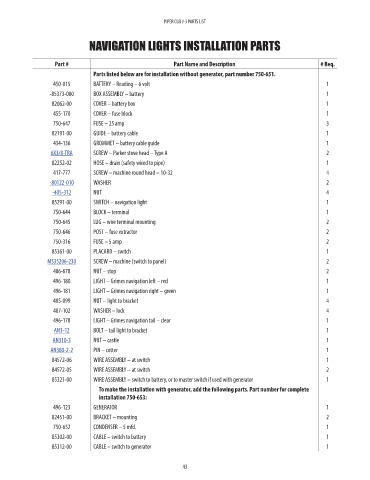

PIPER CUB J-3 PARTS LIST

NAVIGATION LIGHTS INSTALLATION PARTS

Part # Part Name and Description # Req. NM!
Parts listed below are for installation without generator, part number 750-651.
450-015 BATTERY – Reading – 6 volt 1 NM!
-85373-000 BOX ASSEMBLY – battery 1 NM!
82062-00 COVER – battery box 1 NM!

455-170 COVER – fuse block 1 NM!
750-647 FUSE – 25 amp 3 NM!
82191-00 GUIDE – battery cable 1 NM!
434-136 GROMMET – battery cable guide 1 NM!
6X3/8-TRA SCREW – Parker stove head – Type A 2 0.06
82252-02 HOSE – drain (safety wired to pipe) 1 NM!
417-777 SCREW – machine round head – 10-32 4 NM!
-80122-010 WASHER 2 4.81
-405-312 NUT 4 0.07
85291-00 SWITCH – navigation light 1 NM!
750-644 BLOCK – terminal 1 NM!
750-645 LUG – wire terminal mounting 2 NM!
750-646 POST – fuse extractor 2 NM!
750-316 FUSE – 5 amp 2 NM!
85361-00 PLACARD – switch 1 NM!
MS35206-230 SCREW – machine (switch to panel) 2 0.08
406-678 NUT – stop 2 NM!
496-180 LIGHT – Grimes navigation left – red 1 NM!
496-181 LIGHT – Grimes navigation right – green 1 NM!
405-099 NUT – light to bracket 4 NM!
407-102 WASHER – lock 4 NM!
496-178 LIGHT – Grimes navigation tail – clear 1 NM!
AN3-12 BOLT – tail light to bracket 1 1.06
AN310-3 NUT – castle 1 1.5
AN380-2-2 PIN – cotter 1 0.04
84572-06 WIRE ASSEMBLY – at switch 1 NM!
84572-05 WIRE ASSEMBLY – at switch 2 NM!
85321-00 WIRE ASSEMBLY – switch to battery, or to master switch if used with generator 1 NM!
To make the installation with generator, add the following parts. Part number for complete
installation 750-653:
496-123 GENERATOR 1 NM!
82451-00 BRACKET – mounting 2 NM!
750-652 CONDENSER – 5 mfd. 1 NM!
85302-00 CABLE – switch to battery 1 NM!
85312-00 CABLE – switch to generator 1 NM!
