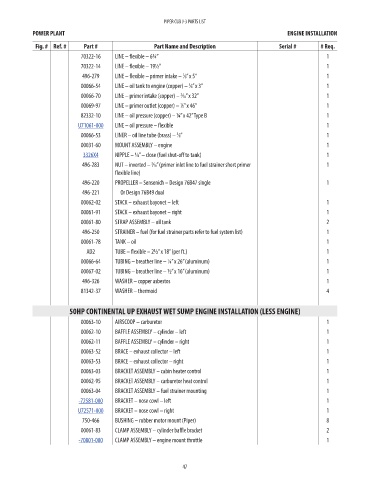

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
70322-16 LINE – flexible – 6¾” 1 NM!
70322-14 LINE – flexible – 19½” 1 NM!
1
496-279 LINE – flexible – primer intake – ⁄8” x 5” 1 NM!
00066-54 LINE – oil tank to engine (copper) – ⁄8” x 3” 1 NM!
5
00066-70 LINE – primer intake (copper) – ⁄16” x 32” 1 NM!
3
1
00069-97 LINE – primer outlet (copper) – ⁄8” x 46” 1 NM!
82332-10 LINE – oil pressure (copper) – ¼” x 42” Type B 1 NM!
U71061-000 LINE – oil pressure – flexible 1 143.43
00066-53 LINER – oil line tube (brass) – ⁄8” 1 NM!
5
00031-60 MOUNT ASSEMBLY – engine 1 NM!
3326X4 NIPPLE – ¼” – close (fuel shut-off to tank) 1 0.97
496-283 NUT – inverted – ⁄16” (primer inlet line to fuel strainer short primer 1 NM!
3
flexible line)
496-220 PROPELLER – Sensenich – Design 76B47 single 1 NM!
496-221 Or Design 76B49 dual NM!
00062-02 STACK – exhaust bayonet – left 1 NM!
00061-91 STACK – exhaust bayonet – right 1 NM!
00061-80 STRAP ASSEMBLY – oil tank 2 NM!
496-250 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
00061-78 TANK – oil 1 NM!
AD2 TUBE – flexible – 2½” x 18” (per ft.) 1 NM!
00066-64 TUBING – breather line – ¼” x 26” (aluminum) 1 NM!
00067-02 TUBING – breather line – ½” x 16” (aluminum) 1 NM!
496-326 WASHER – copper asbestos 1 NM!
81342-37 WASHER – thermoid 4 NM!

50HP CONTINENTAL UP EXHAUST WET SUMP ENGINE INSTALLATION (LESS ENGINE)

00063-10 AIRSCOOP – carburetor 1 NM!
00062-10 BAFFLE ASSEMBLY – cylinder – left 1 NM!
00062-11 BAFFLE ASSEMBLY – cylinder – right 1 NM!
00063-52 BRACE – exhaust collector – left 1 NM!
00063-53 BRACE – exhaust collector – right 1 NM!
00063-03 BRACKET ASSEMBLY – cabin heater control 1 NM!
00062-95 BRACKET ASSEMBLY – carburetor heat control 1 NM!
00063-04 BRACKET ASSEMBLY – fuel strainer mounting 1 NM!
-72581-000 BRACKET – nose cowl – left 1 142.45
U72571-000 BRACKET – nose cowl – right 1 108.72
750-466 BUSHING – rubber motor mount (Piper) 8 NM!
00061-83 CLAMP ASSEMBLY – cylinder baffle bracket 2 NM!
-70801-000 CLAMP ASSEMBLY – engine mount throttle 1 74.4

47
