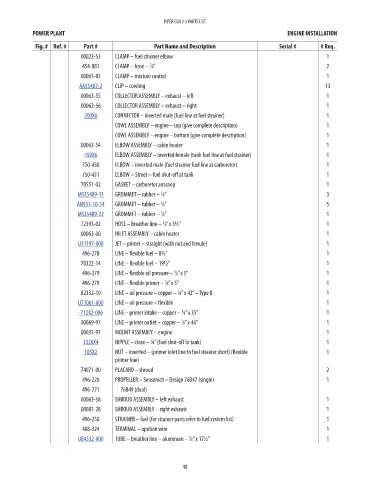

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
00023-53 CLAMP – fuel strainer elbow 1 NM!
454-881 CLAMP – hose – ⁄8” 2 NM!
7
00061-85 CLAMP – mixture control 1 NM!
AA55487-2 CLIP – cowling 13 0.58
00063-55 COLLECTOR ASSEMBLY – exhaust – left 1 NM!
00063-56 COLLECTOR ASSEMBLY – exhaust – right 1 NM!
200X6 CONNECTOR – inverted male (fuel line at fuel strainer) 1 2.76
COWL ASSEMBLY – engine – top (give complete description) 1
COWL ASSEMBLY – engine – bottom (give complete description) 1
00063-54 ELBOW ASSEMBLY – cabin heater 1 NM!
450X6 ELBOW ASSEMBLY – inverted female (tank fuel line at fuel strainer) 1 6.85
750-430 ELBOW – inverted male (fuel strainer fuel line at carburetor) 1 NM!
750-431 ELBOW – Street – fuel shut-off at tank 1 NM!
70551-02 GASKET – carburetor airscoop 1 NM!
3
MS35489-11 GROMMET – rubber – ⁄8” 3 0.6
AN931-10-14 GROMMET – rubber – ⁄8” 5 2
5
MS35489-22 GROMMET – rubber – ⁄8” 1 2.34
7
72393-02 HOSE – breather line – ⁄8” x 3½” 1 NM!
5
00063-00 INLET ASSEMBLY – cabin heater 1 NM!
U31197-000 JET – primer – straight (with nut and ferrule) 1 59.87
496-278 LINE – flexible fuel – 8½” 1 NM!

70322-14 LINE – flexible fuel – 19½” 1 NM!
1
496-279 LINE – flexible oil pressure – ⁄8” x 5” 1 NM!
496-279 LINE – flexible primer – ⁄8” x 5” 1 NM!
1
82332-10 LINE – oil pressure – copper – ¼” x 42” – Type B 1 NM!
U71061-000 LINE – oil pressure – flexible 1 143.43
-71242-006 LINE – primer intake – copper – ⁄8” x 35” 1 68.58
1
00069-97 LINE – primer outlet – copper – ⁄8” x 46” 1 NM!
1
00031-91 MOUNT ASSEMBLY – engine 1 NM!
3326X4 NIPPLE – close – ¼” (fuel shut-off to tank) 1 0.97
105X2 NUT – inverted – (primer inlet line to fuel strainer short) (flexible 1 2.92
primer line)
74071-00 PLACARD – shroud 2 NM!

496-220 PROPELLER – Sensenich – Design 76B47 (single) 1 NM!
496-221 76B49 (dual) NM!
00063-58 SHROUD ASSEMBLY – left exhaust 1 NM!
00081-28 SHROUD ASSEMBLY – right exhaust 1 NM!
496-250 STRAINER – fuel (for strainer parts refer to fuel system list) 1 NM!
488-324 TERMINAL – ignition wire 1 NM!
U84332-000 TUBE – breather line – aluminum – ⁄8” x 17½” 1 99.11
5

48
