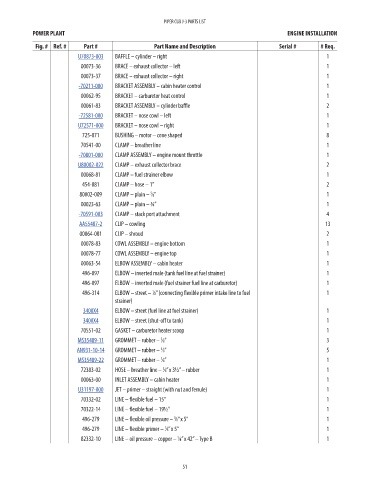

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
U70873-003 BAFFLE – cylinder – right 1 684.68
00073-36 BRACE – exhaust collector – left 1 NM!
00073-37 BRACE – exhaust collector – right 1 NM!
-70211-000 BRACKET ASSEMBLY – cabin heater control 1 10.01
00062-95 BRACKET – carburetor heat control 1 NM!
00061-83 BRACKET ASSEMBLY – cylinder baffle 2 NM!
-72581-000 BRACKET – nose cowl – left 1 142.45
U72571-000 BRACKET – nose cowl – right 1 108.72
725-071 BUSHING – motor – cone shaped 8 NM!
70541-00 CLAMP – breather line 1 NM!
-70801-000 CLAMP ASSEMBLY – engine mount throttle 1 74.4
U80002-022 CLAMP – exhaust collector brace 2 40.39
00068-81 CLAMP – fuel strainer elbow 1 NM!
454-881 CLAMP – hose – 1” 2 NM!
5
80002-009 CLAMP – plain – ⁄8” 1 NM!
00023-63 CLAMP – plain – ¾” 1 NM!
-70591-003 CLAMP – stack port attachment 4 35.53
AA55487-2 CLIP – cowling 13 0.58
00064-081 CLIP – shroud 2 NM!
00078-83 COWL ASSEMBLY – engine bottom 1 NM!
00078-77 COWL ASSEMBLY – engine top 1 NM!

00063-54 ELBOW ASSEMBLY – cabin heater 1 NM!
496-097 ELBOW – inverted male (tank fuel line at fuel strainer) 1 NM!
496-097 ELBOW – inverted male (fuel strainer fuel line at carburetor) 1 NM!
496-314 ELBOW – street – ⁄8” (connecting flexible primer intake line to fuel 1 NM!
1
strainer)
3400X4 ELBOW – street (fuel line at fuel strainer) 1 7.4
3400X4 ELBOW – street (shut-off to tank) 1 7.4
70551-02 GASKET – carburetor heater scoop 1 NM!
3
MS35489-11 GROMMET – rubber – ⁄8” 3 0.6
AN931-10-14 GROMMET – rubber – ⁄8” 5 2
5
MS35489-22 GROMMET – rubber – ⁄8” 1 2.34
7
72383-02 HOSE – breather line – ⁄8” x 3½” – rubber 1 NM!
5
00063-00 INLET ASSEMBLY – cabin heater 1 NM!
U31197-000 JET – primer – straight (with nut and ferrule) 1 59.87
70332-02 LINE – flexible fuel – 15” 1 NM!
70322-14 LINE – flexible fuel – 19½” 1 NM!
496-279 LINE – flexible oil pressure – ⁄8” x 5” 1 NM!
1
496-279 LINE – flexible primer – ⁄8” x 5” 1 NM!
1
82332-10 LINE – oil pressure – copper – ¼” x 42” – Type B 1 NM!

51
