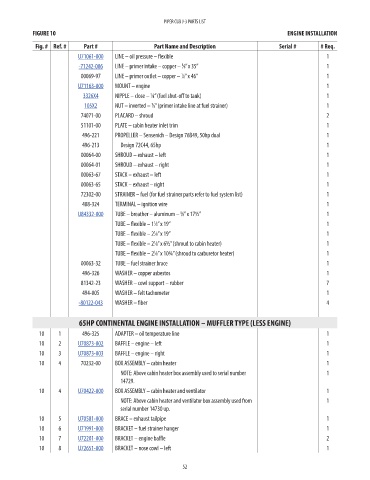

PIPER CUB J-3 PARTS LIST
FIGURE 10 ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
U71061-000 LINE – oil pressure – flexible 1 143.43
-71242-006 LINE – primer intake – copper – ⁄8” x 35” 1 68.58
1
1
00069-97 LINE – primer outlet – copper – ⁄8” x 46” 1 NM!
U71163-000 MOUNT – engine 1 1197.11
3326X4 NIPPLE – close – ¼” (fuel shut-off to tank) 1 0.97
1
105X2 NUT – inverted – ⁄8” (primer intake line at fuel strainer) 1 2.92
74071-00 PLACARD – shroud 2 NM!
51101-00 PLATE – cabin heater inlet trim 1 NM!
496-221 PROPELLER – Sensenich – Design 76B49, 50hp dual 1 NM!
496-213 Design 72C44, 65hp 1 NM!
00064-00 SHROUD – exhaust – left 1 NM!
00064-01 SHROUD – exhaust – right 1 NM!
00063-67 STACK – exhaust – left 1 NM!
00063-65 STACK – exhaust – right 1 NM!
72302-00 STRAINER – fuel (for fuel strainer parts refer to fuel system list) 1 NM!
488-324 TERMINAL – ignition wire 1 NM!
U84332-000 TUBE – breather – aluminum – ⁄8” x 17½” 1 99.11
5
TUBE – flexible – 1 ⁄8” x 19” 1
1
1
TUBE – flexible – 2 ⁄8” x 19” 1
TUBE – flexible – 2 ⁄8” x 6½” (shroud to cabin heater) 1
1
TUBE – flexible – 2 ⁄8” x 10¾” (shroud to carburetor heater) 1
1
00063-32 TUBE – fuel strainer brace 1 NM!
496-326 WASHER – copper asbestos 1 NM!
81342-23 WASHER – cowl support – rubber 7 NM!
494-005 WASHER – felt tachometer 1 NM!
-80122-043 WASHER – fiber 4 4.51

65HP CONTINENTAL ENGINE INSTALLATION – MUFFLER TYPE (LESS ENGINE)
10 1 496-325 ADAPTER – oil temperature line 1 NM!
10 2 U70873-002 BAFFLE – engine – left 1 684.68
10 3 U70873-003 BAFFLE – engine – right 1 684.68
10 4 70232-00 BOX ASSEMBLY – cabin heater 1 NM!
NOTE: Above cabin heater box assembly used to serial number 1
14729.
10 4 U70422-000 BOX ASSEMBLY – cabin heater and ventilator 1 476.5
NOTE: Above cabin heater and ventilator box assembly used from 1
serial number 14730 up.
10 5 U70581-000 BRACE – exhaust tailpipe 1 81.12
10 6 U71991-000 BRACKET – fuel strainer hanger 1 77.83
10 7 U72201-000 BRACKET – engine baffle 2 79.87
10 8 U72651-000 BRACKET – nose cowl – left 1 94.27
