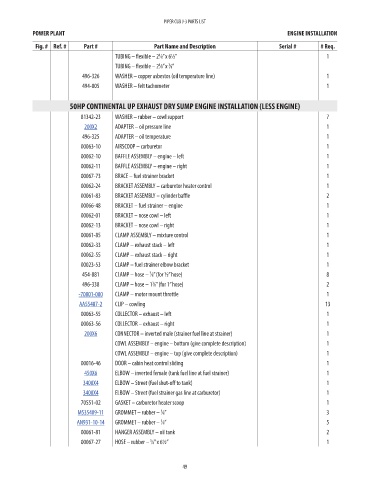

PIPER CUB J-3 PARTS LIST
POWER PLANT ENGINE INSTALLATION
Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
TUBING – flexible – 2 ⁄8” x 6½” 1
1
TUBING – flexible – 2 ⁄8” x ⁄8”
3
1
496-326 WASHER – copper asbestos (oil temperature line) 1 NM!
494-005 WASHER – felt tachometer 1 NM!
50HP CONTINENTAL UP EXHAUST DRY SUMP ENGINE INSTALLATION (LESS ENGINE)
81342-23 WASHER – rubber – cowl support 7 NM!
200X2 ADAPTER – oil pressure line 1 2.11
496-325 ADAPTER – oil temperature 1 NM!
00063-10 AIRSCOOP – carburetor 1 NM!
00062-10 BAFFLE ASSEMBLY – engine – left 1 NM!
00062-11 BAFFLE ASSEMBLY – engine – right 1 NM!
00067-73 BRACE – fuel strainer bracket 1 NM!
00062-24 BRACKET ASSEMBLY – carburetor heater control 1 NM!
00061-83 BRACKET ASSEMBLY – cylinder baffle 2 NM!
00066-48 BRACKET – fuel strainer – engine 1 NM!
00062-01 BRACKET – nose cowl – left 1 NM!
00062-13 BRACKET – nose cowl – right 1 NM!
00061-85 CLAMP ASSEMBLY – mixture control 1 NM!
00062-33 CLAMP – exhaust stack – left 1 NM!
00062-55 CLAMP – exhaust stack – right 1 NM!
00023-53 CLAMP – fuel strainer elbow bracket 1 NM!
454-881 CLAMP – hose – ⁄8” (for ½” hose) 8 NM!
7
496-338 CLAMP – hose – 1 ⁄8” (for 1” hose) 2 NM!
3
-70801-000 CLAMP – motor mount throttle 1 74.4
AA55487-2 CLIP – cowling 13 0.58
00063-55 COLLECTOR – exhaust – left 1 NM!
00063-56 COLLECTOR – exhaust – right 1 NM!
200X6 CONNECTOR – inverted male (strainer fuel line at strainer) 1 2.76
COWL ASSEMBLY – engine – bottom (give complete description) 1
COWL ASSEMBLY – engine – top (give complete description) 1
00016-46 DOOR – cabin heat control sliding 1 NM!
450X6 ELBOW – inverted female (tank fuel line at fuel strainer) 1 6.85
3400X4 ELBOW – Street (fuel shut-off to tank) 1 7.4
3400X4 ELBOW – Street (fuel strainer gas line at carburetor) 1 7.4
70551-02 GASKET – carburetor heater scoop 1 NM!
MS35489-11 GROMMET – rubber – ⁄8” 3 0.6
3
AN931-10-14 GROMMET – rubber – ⁄8” 5 2
5
00061-81 HANGER ASSEMBLY – oil tank 2 NM!
00067-27 HOSE – rubber – ⁄8” x 6½” 1 NM!
5
49
