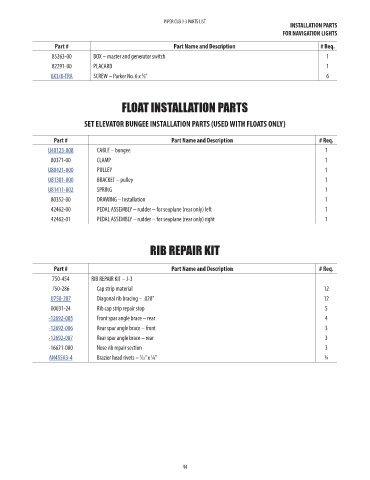

PIPER CUB J-3 PARTS LIST
INSTALLATION PARTS
FOR NAVIGATION LIGHTS

Part # Part Name and Description # Req. NM!
85263-00 BOX – master and generator switch 1 NM!
82291-00 PLACARD 1 NM!
3
6X3/8-TRA SCREW – Parker No. 6 x ⁄8” 6 0.06

FLOAT INSTALLATION PARTS

SET ELEVATOR BUNGEE INSTALLATION PARTS (USED WITH FLOATS ONLY)

Part # Part Name and Description # Req. Price
U40123-008 CABLE – bungee 1 47.16
80371-00 CLAMP 1 NM!
U80421-000 PULLEY 1 12.37
U81381-000 BRACKET – pulley 1 79.4
U81411-002 SPRING 1 40.44
80352-00 DRAWING – Installation 1 NM!
42462-00 PEDAL ASSEMBLY – rudder – for seaplane (rear only) left 1 NM!
42462-01 PEDAL ASSEMBLY – rudder – for seaplane (rear only) right 1 NM!

RIB REPAIR KIT

Part # Part Name and Description # Req. Price

750-454 RIB REPAIR KIT – J-3 NM!
750-286 Cap strip material 12 NM!
U750-287 Diagonal rib bracing – .020” 12 14.5
00031-24 Rib cap strip repair stop 5 NM!
-12692-005 Front spar angle brace – rear 4 10.57
-12692-006 Rear spar angle brace – front 3 11
-12692-007 Rear spar angle brace – rear 3 11.6
-16621-000 Nose rib repair section 3 NM!
AN455A3-4 Brazier head rivets – ⁄32” x ¼” ¼ 3.67
7

44
