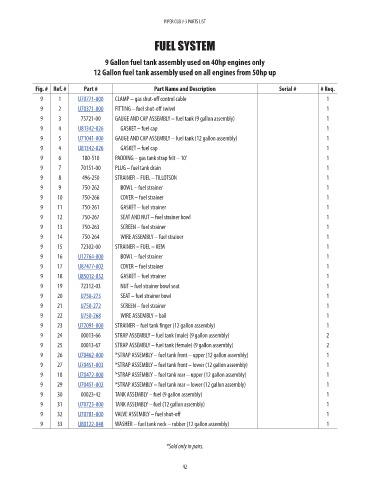

PIPER CUB J-3 PARTS LIST

FUEL SYSTEM

9 Gallon fuel tank assembly used on 40hp engines only
12 Gallon fuel tank assembly used on all engines from 50hp up

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Part
9 1 U70771-000 CLAMP – gas shut-off control cable 1 58.61
9 2 U70371-000 FITTING – fuel shut-off swivel 1 56.83
9 3 75721-00 GAUGE AND CAP ASSEMBLY – fuel tank (9 gallon assembly) 1 NM!
9 4 U81342-026 GASKET – fuel cap 1 6.49
9 5 U71041-000 GAUGE AND CAP ASSEMBLY – fuel tank (12 gallon assembly) 1 187.64
9 4 U81342-026 GASKET – fuel cap 1 6.49
9 6 180-510 PADDING – gas tank strap felt – 10’ 1 NM!
9 7 70151-00 PLUG – fuel tank drain 1 NM!
9 8 496-250 STRAINER – FUEL – TILLOTSON 1 NM!
9 9 750-262 BOWL – fuel strainer 1 NM!
9 10 750-266 COVER – fuel strainer 1 NM!
9 11 750-261 GASKET – fuel strainer 1 NM!
9 12 750-267 SEAT AND NUT – fuel strainer bowl 1 NM!
9 13 750-263 SCREEN – fuel strainer 1 NM!
9 14 750-264 WIRE ASSEMBLY – fuel strainer 1 NM!
9 15 72302-00 STRAINER – FUEL – KEM 1 NM!
9 16 U12764-000 BOWL – fuel strainer 1 136.73
9 17 U87477-002 COVER – fuel strainer 1 122.83
9 18 U85012-032 GASKET – fuel strainer 1 4.19
9 19 72312-03 NUT – fuel strainer bowl seat 1 NM!
9 20 U750-273 SEAT – fuel strainer bowl 1 18.9
9 21 U750-272 SCREEN – fuel strainer 1 2.89
9 22 U750-268 WIRE ASSEMBLY – bail 1 37.85
9 23 U72091-000 STRAINER – fuel tank finger (12 gallon assembly) 1 69.26
9 24 00013-66 STRAP ASSEMBLY – fuel tank (male) (9 gallon assembly) 2 NM!
9 25 00013-67 STRAP ASSEMBLY – fuel tank (female) (9 gallon assembly) 2 NM!
9 26 U70462-000 *STRAP ASSEMBLY – fuel tank front – upper (12 gallon assembly) 1 187.49
9 27 U70451-003 *STRAP ASSEMBLY – fuel tank front – lower (12 gallon assembly) 1 98.44
9 18 U70472-000 *STRAP ASSEMBLY – fuel tank rear – upper (12 gallon assembly) 1 160.14
9 29 U70451-002 *STRAP ASSEMBLY – fuel tank rear – lower (12 gallon assembly) 1 65.88
9 30 00023-42 TANK ASSEMBLY – fuel (9 gallon assembly) 1 NM!
9 31 U70723-000 TANK ASSEMBLY – fuel (12 gallon assembly) 1 1009.52

9 32 U70781-000 VALVE ASSEMBLY – fuel shut-off 1 200.05
9 33 U80122-048 WASHER – fuel tank neck – rubber (12 gallon assembly) 1 8.21

*Sold only in pairs.
