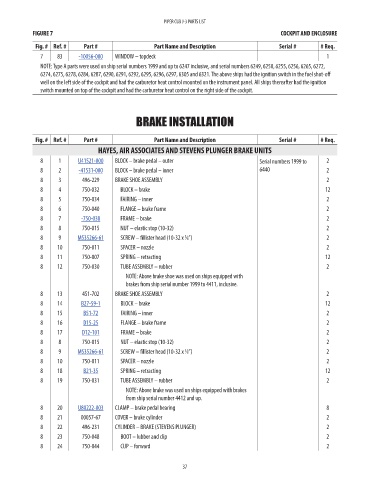

PIPER CUB J-3 PARTS LIST
FIGURE 7 COCKPIT AND ENCLOSURE

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
7 83 -10056-000 WINDOW – topdeck 1 82.42
NOTE: Type A parts were used on ship serial numbers 1999 and up to 6247 inclusive, and serial numbers 6249, 6250, 6255, 6256, 6265, 6272,
6274, 6275, 6278, 6284, 6287, 6290, 6291, 6292, 6295, 6296, 6297, 6305 and 6321. The above ships had the ignition switch in the fuel shut-off
well on the left side of the cockpit and had the carburetor heat control mounted on the instrument panel. All ships thereafter had the ignition
switch mounted on top of the cockpit and had the carburetor heat control on the right side of the cockpit.

BRAKE INSTALLATION

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
HAYES, AIR ASSOCIATES AND STEVENS PLUNGER BRAKE UNITS
8 1 U41521-000 BLOCK – brake pedal – outer Serial numbers 1999 to 2 100.94
8 2 -41531-000 BLOCK – brake pedal – inner 6440 2 83.12
8 3 496-229 BRAKE SHOE ASSEMBLY 2 NM!
8 4 750-032 BLOCK – brake 12 NM!
8 5 750-034 FAIRING – inner 2 NM!
8 6 750-040 FLANGE – brake frame 2 NM!
8 7 -750-038 FRAME – brake 2 16.25
8 8 750-015 NUT – elastic stop (10-32) 2 NM!
8 9 MS35266-61 SCREW – fillister head (10-32 x ⁄8”) 2 0.38
3
8 10 750-011 SPACER – nozzle 2 NM!
8 11 750-007 SPRING – retracting 12 NM!
8 12 750-030 TUBE ASSEMBLY – rubber 2 NM!
NOTE: Above brake shoe was used on ships equipped with
brakes from ship serial number 1999 to 4411, inclusive.
8 13 451-702 BRAKE SHOE ASSEMBLY 2 NM!
8 14 B27-59-1 BLOCK – brake 12 73.02
8 15 B51-72 FAIRING – inner 2 107.93
8 16 D15-25 FLANGE – brake frame 2 50.8
8 17 D12-101 FRAME – brake 2 28.13
8 8 750-015 NUT – elastic stop (10-32) 2 NM!
8 9 MS35266-61 SCREW – fillister head (10-32 x ⁄8”) 2 0.38
3
8 10 750-011 SPACER – nozzle 2 NM!
8 18 B21-35 SPRING – retracting 12 9.32
8 19 750-031 TUBE ASSEMBLY – rubber 2 NM!
NOTE: Above brake was used on ships equipped with brakes
from ship serial number 4412 and up.
8 20 U80222-003 CLAMP – brake pedal bearing 8 19.34
8 21 00057-67 COVER – brake cylinder 2 NM!
8 22 496-231 CYLINDER – BRAKE (STEVENS PLUNGER) 2 NM!
8 23 750-048 BOOT – lubber and clip 2 NM!
8 24 750-044 CUP – forward 2 NM!

37
