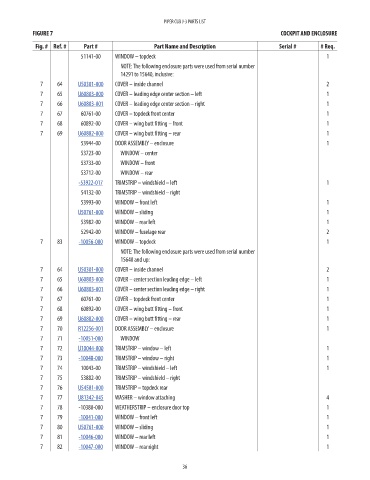

PIPER CUB J-3 PARTS LIST
            FIGURE 7                                                                          COCKPIT AND ENCLOSURE

             Fig. # Ref. #   Part #                 Part Name and Description                Serial #      # Req.                     Price
                            51141-00   WINDOW – topdeck                                                      1                    NM!
                                         NOTE: The following enclosure parts were used from serial number
                                         14291 to 15640, inclusive:
              7     64     U50301-000  COVER – inside channel                                                2                    25.99
              7     65     U60803-000  COVER – leading edge center section – left                            1                    27.81
              7     66     U60803-001  COVER – leading edge center section – right                           1                    27.81

              7     67      60761-00   COVER – topdeck front center                                          1                    NM!
              7     68      60892-00   COVER – wing butt fitting – front                                     1                    NM!
              7     69     U60882-000  COVER – wing butt fitting – rear                                      1                    29.57
                            53944-00   DOOR ASSEMBLY – enclosure                                             1                    NM!
                            53723-00     WINDOW – center                                                                          NM!
                            53733-00     WINDOW – front                                                                           NM!
                            53712-00     WINDOW – rear                                                                            NM!
                           -53922-017  TRIMSTRIP – windshield – left                                         1                    59.1
                            54132-00   TRIMSTRIP – windshield – right                                                             NM!
                            53993-00   WINDOW – front left                                                   1                    NM!
                           U50761-000  WINDOW – sliding                                                      1                    239.87
                            53982-00   WINDOW – rear left                                                    1                    NM!
                            52942-00   WINDOW – fuselage rear                                                2                    NM!
              7     83     -10056-000  WINDOW – topdeck                                                      1                    82.42
                                         NOTE: The following enclosure parts were used from serial number
                                         15640 and up:
              7     64     U50301-000  COVER – inside channel                                                2                    25.99
              7     65     U60803-000  COVER – center section leading edge – left                            1                    27.81
              7     66     U60803-001  COVER – center section leading edge – right                           1                    27.81
              7     67      60761-00   COVER – topdeck front center                                          1                    NM!
              7     68      60892-00   COVER – wing butt fitting – front                                     1                    NM!
              7     69     U60882-000  COVER – wing butt fitting – rear                                      1                    29.57
              7     70     R12256-001  DOOR ASSEMBLY – enclosure                                             1                    1057.83
              7     71     -10051-000    WINDOW                                                                                   103.95
              7     72     U10044-000  TRIMSTRIP – window – left                                             1                    63.12
              7     73     -10048-000  TRIMSTRIP – window – right                                            1                    43.82
              7     74      10043-00   TRIMSTRIP – windshield – left                                         1                    NM!
              7     75      53882-00   TRIMSTRIP – windshield – right                                                             NM!
              7     76     U54581-000  TRIMSTRIP – topdeck rear                                                                   25.52
              7     77     U81342-045  WASHER – window attaching                                             4                    4.62
              7     78     -10380-000  WEATHERSTRIP – enclosure door top                                     1                    NM!
              7     79     -10041-000  WINDOW – front left                                                   1                    57.92
              7     80     U50761-000  WINDOW – sliding                                                      1                    239.87
              7     81     -10046-000  WINDOW – rear left                                                    1                    79.45
              7     82     -10047-000  WINDOW – rear right                                                   1                    66.08
