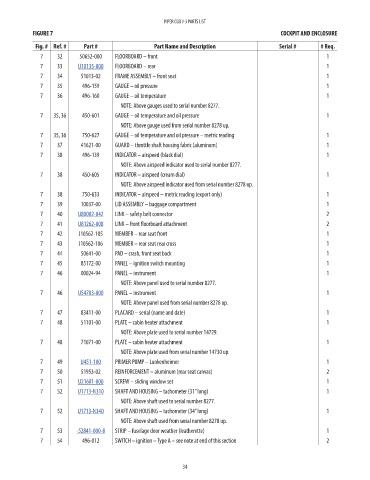

PIPER CUB J-3 PARTS LIST
FIGURE 7 COCKPIT AND ENCLOSURE

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
7 32 50652-000 FLOORBOARD – front 1 NM!
7 33 U10135-000 FLOORBOARD – rear 1 177.21
7 34 51013-02 FRAME ASSEMBLY – front seat 1 NM!
7 35 496-159 GAUGE – oil pressure 1 NM!
7 36 496-160 GAUGE – oil temperature 1 NM!
NOTE: Above gauges used to serial number 8277.
7 35, 36 450-601 GAUGE – oil temperature and oil pressure 1 NM!
NOTE: Above gauge used from serial number 8278 up.
7 35, 36 750-627 GAUGE – oil temperature and oil pressure – metric reading 1 NM!
7 37 41621-00 GUARD – throttle shaft housing fabric (aluminum) 1 NM!
7 38 496-139 INDICATOR – airspeed (black dial) 1 NM!
NOTE: Above airspeed indicator used to serial number 8277.
7 38 450-605 INDICATOR – airspeed (cream dial) 1 NM!
NOTE: Above airspeed indicator used from serial number 8278 up.
7 38 750-633 INDICATOR – airspeed – metric reading (export only) 1 NM!
7 39 10037-00 LID ASSEMBLY – baggage compartment 1 NM!
7 40 U80002-042 LINK – safety belt connector 2 81.49
7 41 U81262-008 LINK – front floorboard attachment 2 12.3
7 42 J10562-105 MEMBER – rear seat front 1 NM!
7 43 J10562-106 MEMBER – rear seat rear cross 1 NM!
7 44 50641-00 PAD – crash, front seat back 1 NM!

7 45 85172-00 PANEL – ignition switch mounting 1 NM!
7 46 00024-94 PANEL – instrument 1 NM!
NOTE: Above panel used to serial number 8277.
7 46 U54703-000 PANEL – instrument 1 74.8
NOTE: Above panel used from serial number 8278 up.
7 47 83411-00 PLACARD – serial (name and date) 1 NM!
7 48 51101-00 PLATE – cabin heater attachment 1 NM!
NOTE: Above plate used to serial number 14729.
7 48 71071-00 PLATE – cabin heater attachment 1 NM!
NOTE: Above plate used from serial number 14730 up.
7 49 U451-100 PRIMER PUMP – Lunkenheimer 1 419.22
7 50 51953-02 REINFORCEMENT – aluminum (rear seat canvas) 2 NM!
7 51 U21601-000 SCREW – sliding window set 1 16.61
7 52 U1713-N310 SHAFT AND HOUSING – tachometer (31” long) 1 151.82
NOTE: Above shaft used to serial number 8277.
7 52 U1713-N340 SHAFT AND HOUSING – tachometer (34” long) 1 166.15
NOTE: Above shaft used from serial number 8278 up.
7 53 -52841-000-8 STRIP – fuselage door weather (leatherette) 1 28.38
7 54 496-012 SWITCH – ignition – Type A – see note at end of this section 2 NM!

34
