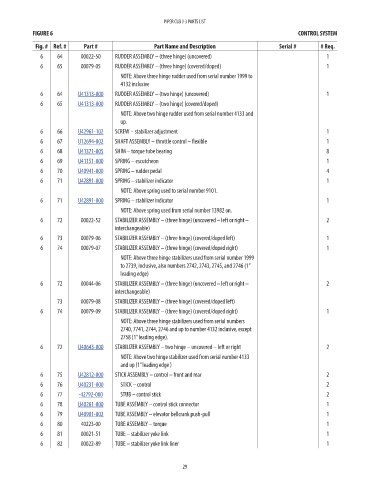

PIPER CUB J-3 PARTS LIST
FIGURE 6 CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
6 64 00022-50 RUDDER ASSEMBLY – (three hinge) (uncovered) 1 NM!
6 65 00079-05 RUDDER ASSEMBLY – (three hinge) (covered/doped) 1 NM!
NOTE: Above three hinge rudder used from serial number 1999 to
4132 inclusive
6 64 U41313-000 RUDDER ASSEMBLY – (two hinge) (uncovered) 1 791.86
6 65 U41313-000 RUDDER ASSEMBLY – (two hinge) (covered/doped) 791.86

NOTE: Above two hinge rudder used from serial number 4133 and
up.
6 66 U42961-102 SCREW – stabilizer adjustment 1 112.38
6 67 U12694-002 SHAFT ASSEMBLY – throttle control – flexible 1 553.61
6 68 U41371-005 SHIM – torque tube bearing 8 11.92
6 69 U41151-000 SPRING – escutcheon 1 9.64
6 70 U40941-000 SPRING – rudder pedal 4 11.31
6 71 U42891-000 SPRING – stabilizer indicator 1 7.53
NOTE: Above spring used to serial number 9101.
6 71 U42891-000 SPRING – stabilizer indicator 1 7.53
NOTE: Above spring used from serial number 13982 on.
6 72 00022-52 STABILIZER ASSEMBLY – (three hinge) (uncovered – left or right – 2 NM!
interchangeable)
6 73 00079-06 STABILIZER ASSEMBLY – (three hinge) (covered/doped left) 1 NM!
6 74 00079-07 STABILIZER ASSEMBLY – (three hinge) (covered/doped right) 1 NM!
NOTE: Above three hinge stabilizers used from serial number 1999
to 2739, inclusive, also numbers 2742, 2743, 2745, and 2746 (1”
leading edge)
6 72 00044-06 STABILIZER ASSEMBLY – (three hinge) (uncovered – left or right – 2 NM!
interchangeable)
73 00079-08 STABILIZER ASSEMBLY – (three hinge) (covered/doped left) NM!
6 74 00079-09 STABILIZER ASSEMBLY – (three hinge) (covered/doped right) 1 NM!
NOTE: Above three hinge stabilizers used from serial numbers
2740, 7741, 2744, 2746 and up to number 4132 inclusive, except
2758 (1” leading edge).
6 72 U40643-000 STABILIZER ASSEMBLY – two hinge – uncovered – left or right 2 793.86
NOTE: Above two hinge stabilizer used from serial number 4133
and up (1” leading edge )
6 75 U42812-000 STICK ASSEMBLY – control – front and rear 2 566.04
6 76 U40231-000 STICK – control 2 124.05
6 77 -42792-000 STUB – control stick 2 398.8
6 78 U40261-000 TUBE ASSEMBLY – control stick connector 1 197.65
6 79 U40901-002 TUBE ASSEMBLY – elevator bellcrank push-pull 1 540.1

6 80 40223-00 TUBE ASSEMBLY – torque 1 NM!
6 81 00021-51 TUBE – stabilizer yoke link 1 NM!
6 82 00022-89 TUBE – stabilizer yoke link liner 1 NM!

29
